Installation [07/2022 - ]: Procedure

WARNING: This page is about a different car, the 2024 Toyota Supra and 2023 Toyota Supra. However, it is still accessible from the selected car via links, so may be relevant.
  1. REPLACE TRANSMISSION ASSEMBLY
    WARNING:

    Materials harmful to health.

    1. Contact with fluids harmful to health.
      • Note and follow safety information on containers.
      • Conduct all work in appropriate personal protective equipment only.
    NOTE:

    Damage to the transmission.

    1. Damage to the transmission by unapproved transmission oil.
      • Use only the approved transmission oil.

        Manual transmission fluid

        Manual Transmission Fluid MTF-LT-5

      • Check the transmission oil level after completing the repair.

        See step  2

    HINT:

    • Exchange transmissions come filled with oil
    • Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
    • After installing the gear sensor, it is necessary to teach in the position of the gear sensor again.
    • The adjustment is performed using the "Service function" of the diagnosis system (learn/write gear sensor).
    1. Remount the gearshift rod joint (2).

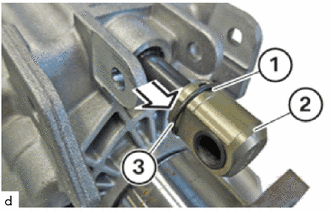

      GTY1143897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide back the circlip (3) and drive out the cylindrical pin (1).
    3. Check the damping disc (1) in gearshift rod joint (2) for damage and renew if necessary.

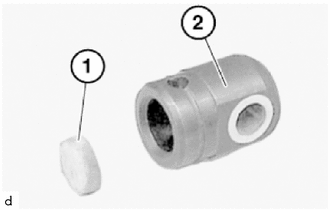

      GTY1143890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remount the release bearing and release lever.
    5. Remount the ball pin and wire spring clip.
    6. Remount the stud bolts for clutch slave cylinder.
    7. Remount the exhaust bracket.
    8. Remount transmission mounting bracket.
    9. Remount the transmission housing sound insulation.
    10. If necessary, remount the reversing light switch.
    11. If applicable, re-insert gear sensor, screws using Loctite.
  2. TEMPORARILY TIGHTEN MANUAL TRANSMISSION ASSEMBLY
    WARNING:

    Materials harmful to health.

    1. Contact with fluids harmful to health!
      • Note and follow safety information on containers.
      • Conduct all work in appropriate personal protective equipment only.
    NOTE:
    • Damage to the transmission.

      Damage to the transmission by unapproved transmission oil.

      • Use only the approved transmission oil.

        Manual transmission fluid

        Manual Transmission Fluid MTF-LT-5

      • Check the transmission oil level after completing the repair.

        See step  2

    • Clutch damage.

      When the transmission is unscrewed, the transmission must not hang freely because this may cause a deformation of the clutch disc.

      • Support the transmission with a transmission jack.
    1. Flange-mount transmission.
      GTY1143926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Fit the transmission E11 or E14 bolts (arrows) and apply hand-tight.
  3. CONNECT NO. 2 EARTH WIRE
    1. Install the No. 2 earth wire (2).
      GTY1143925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten down nut (1).

      Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

  4. INSTALL NO. 2 MANIFOLD STAY

    Refer to PROCEDURE - Step 5

  5. FULLY TIGHTEN MANUAL TRANSMISSION ASSEMBLY
    1. Connect connector (1) to the transmission.
      GTY1143931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect connector (1).
    3. Grease gearshift rod pins (1) of gearshift rod (2).
      GTY1159955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      For additional information see: 1.0 Greasing and mounting shifting components

    4. Hook gearshift rod (1) into gearshift lever (3) in the direction of the arrow.

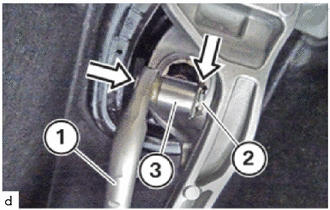

      GTY1159960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Insert retaining clip (2).

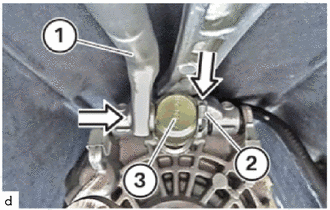

    6. Hook gearshift rod (1) in the direction of the arrow into the gearshift rod joint (3).
      GTY1159959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Insert retaining clip (2).
    8. Renew bolts (1).
      GTY1141907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Install the clutch slave cylinder (2) with the bracket (3).
    10. Insert bolts (1) and tighten.

      Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

    11. Tighten the E11 or E14 bolts in sequence (1) to (9).

      E11 Bolt

      Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

      E14 Bolt

      Torque: 66 N*m (673 kgf*cm, 49 ft.*lbf)

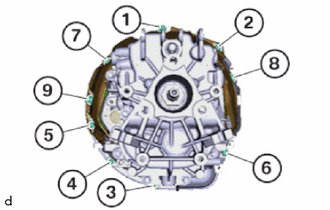

      GTY1141902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL PROPELLER SHAFT ASSEMBLY WITH CENTER BEARING

    Refer to PROCEDURE - Step 1

  7. INSTALL REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 42

  8. INSTALL REAR ENGINE MOUNTING INSULATOR

    Refer to PROCEDURE - Step 41

  9. INSTALL REAR ENGINE MOUNTING MEMBER

    Refer to PROCEDURE - Step 17

  10. INSTALL FLOOR HEAT INSULATOR

    Refer to PROCEDURE - Step 18

  11. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR

    Refer to PROCEDURE - Step 4

  12. INSTALL EXHAUST PIPE ASSEMBLY

    Refer to INSTALLATION [03/2019 - ]

  13. INSPECT MANUAL TRANSMISSION OIL

    See step  2

  14. INSTALL FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 8

  15. INSTALL FRONT FLOOR COVER RH

    HINT:

    Use the same procedure as for the LH side.

  16. INSTALL OIL PAN COVER

    Refer to PROCEDURE - Step 3

  17. INSTALL FRONT SUSPENSION MEMBER LOWER PROTECTOR

    Refer to PROCEDURE - Step 1

  18. INSTALL FRONT FLOOR COVER

    Refer to PROCEDURE - Step 2

  19. INSTALL BATTERY NEGATIVE TERMINAL

    Refer to INSTALLATION [03/2019 - ]

  20. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 7
