Installation [03/2019 - 03/2020]: Procedure

  1. INSTALL NO. 1 TURBO WATER PIPE SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the turbocharger sub-assembly is necessary.

    See step  1

  2. INSTALL INLET TURBO OIL PIPE SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the turbocharger sub-assembly is necessary.

    See step  1

  3. INSTALL NO. 2 TURBO WATER PIPE SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the turbocharger sub-assembly is necessary.

    See step  1

  4. INSPECT THE COMPONENTS PRIOR TO INSTALLATION OF THE TURBOCHARGER SUB-ASSEMBLY
    1. Check the outlet turbo oil pipe and inlet turbo oil pipe sub-assembly for contamination, obstruction and damage: clean or replace if necessary.

      HINT:

      If the outlet turbo oil pipe and/or inlet turbo oil pipe sub-assembly are heavily contaminated, we recommend changing the engine oil and the oil filter.3

    2. Check the No. 1 turbo water pipe sub-assembly and No. 2 turbo water pipe sub-assembly for the turbocharger sub-assembly for contamination, obstruction and damage: clean or replace if necessary.
    3. Check all bolt connections and cable connections for correct fit.
    4. Check air cleaner for contamination and clean or replace as needed.
    5. Check correct functioning of ventilation hose.
  5. INSTALL TURBOCHARGER SUB-ASSEMBLY

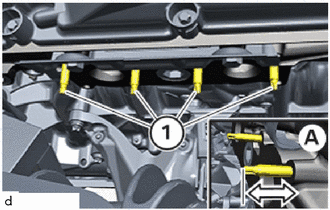

    1. Check screw-in depth (A) of the E6 stud bolts (1); if necessary, screw the stud bolts in further or unscrew.
      GTY946067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Secure the E6 stud bolts (1) with screw locking.

      Adhesive

      Screw Lock Loctite 273, High Strength

      Standard

      Dimension (A) = 30 mm (1.18 in.)

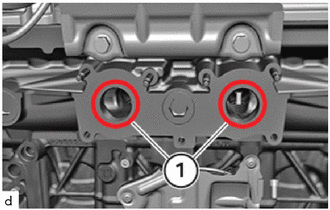

    2. Clean sealing surfaces (1) on the exhaust manifold and on the cylinder head sub-assembly.
      GTY946084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Damage to the surface.
      • The use of metal-cutting tools (e.g. emery cloth) to clean the surfaces can damage them and lead to leaks or engine damage.
        • Do not use any metal-cutting tools.

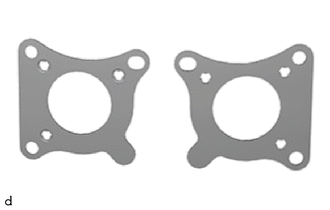

    3. Replace exhaust manifold to head gaskets.
      GTY946088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

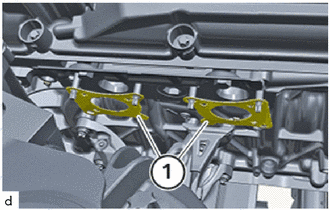

    4. Position the exhaust manifold to head gaskets (1) on the cylinder head sub-assembly.
      GTY946072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Make sure the exhaust manifold to head gaskets (1) are positioned correctly.

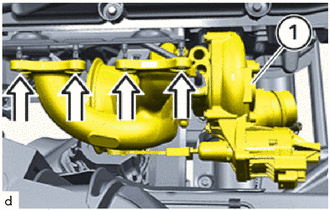

    5. Install turbocharger sub-assembly (1) in the direction of the arrow.
      GTY946070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Protect the turbocharger sub-assembly (1) from falling.

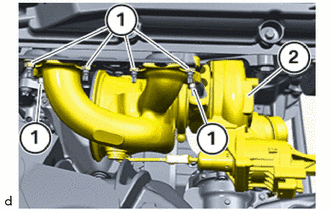

    6. Replace the nuts on the turbocharger sub-assembly.
      GTY946058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Tighten nuts.

      Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)

    8. Replace the T40 bolt.
    9. Tighten the T40 bolt on the turbocharger sub-assembly.

      Torque: 19 N.m (194 kgf/cm, 14 ft.lbf)

    10. Install the No. 1 turbo water pipe sub-assembly in the cylinder block sub-assembly and tighten the T30 bolt.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

    11. Tighten down the T30 bolt.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

    12. Fill turbocharger sub-assembly up to the top with engine oil using the inlet turbo oil pipe sub-assembly connection.

      Engine oil

      Toyota Genuine Motor Oil SN 0W-20 C5 for GR Toyota Supra

      HINT:

      • Technically suitable engine oils for BMW Group engines
      • Observe the sign in the engine compartment! Only pour in approved engine oil with the correct SAE viscosity classification.
  6. CONNECT INLET TURBO OIL PIPE SUB-ASSEMBLY
    1. Position turbo oil inlet pipe sub-assembly.
    2. Tighten down the T30 bolt.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  7. CONNECT NO. 2 TURBO WATER PIPE SUB-ASSEMBLY
    1. Tighten the T30 bolt on the holder of the No. 2 turbo water pipe sub-assembly.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

    2. Connect the coolant hose.
  8. INSTALL OUTLET TURBO OIL PIPE

    See step  1

  9. INSTALL EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

    Refer to INSTALLATION [03/2019 - ]

  10. INSTALL INLET COMPRESSOR ELBOW

    See step  1

  11. INSTALL VENTILATION HOSE

    See step  2

  12. INSTALL NO. 2 AIR CLEANER HOSE

    Refer to INSTALLATION [03/2019 - ]

  13. INSTALL EXHAUST PIPE ASSEMBLY

    Refer to INSTALLATION [03/2019 - ]

  14. INSTALL STEERING LINK ASSEMBLY

    Refer to INSTALLATION [03/2019 - 07/2020]

  15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to INSTALLATION [03/2019 - ]

  16. ADD ENGINE COOLANT (for High Temperature)

    Refer to REPLACEMENT [03/2019 - ]

  17. INSPECT FOR COOLANT LEAK (for High Temperature)

    Refer to PROCEDURE - Step 1

  18. INSPECT FOR EXHAUST GAS LEAK

    See step  7

  19. INSTALL CHECK ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 1
