Removal [02/2019 - 10/2019]: Procedure

PRECAUTION

WARNING:

Be sure to read precaution thoroughly before servicing.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Occupant Classification System:
Refer to PRECAUTION [02/2019 - 08/2020]
w/o Occupant Classification System:
Refer to PRECAUTION [11/2018 - 08/2020]

NOTE:

After the ignition switch is turned off, the navigation system requires approximately a minute to record various types of memory and settings. As a result, after turning the ignition switch off, wait a minute or more before disconnecting the cable from the negative (-) auxiliary battery terminal.

Refer to PRECAUTION [11/2018 - ]

REMOVE DECK BOARD ASSEMBLY (for HV Model)
Refer to PROCEDURE - Step 2
REMOVE REAR NO. 2 FLOOR BOARD (for HV Model)
Refer to PROCEDURE - Step 3
REMOVE BATTERY HOLE COVER (for HV Model)
Refer to PROCEDURE - Step 4

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

for A25A-FKS:
Refer to PROCEDURE - Step 2
for A25A-FXS:
Refer to PROCEDURE - Step 5

WARNING:

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
If the airbag deploys for any reason, it may cause a serious accident.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [02/2019 - 10/2019]

REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)
Refer to PROCEDURE - Step 1
REMOVE REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)
Refer to PROCEDURE - Step 2
REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 24
REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
HINT:

Pull back the front door opening trim weatherstrip LH so that the lower center pillar garnish LH can be removed.

Refer to PROCEDURE - Step 3
REMOVE REAR DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 8
REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
HINT:

Pull back the rear door opening trim weatherstrip LH so that the lower center pillar garnish LH can be removed.

Refer to PROCEDURE - Step 2

REMOVE LAP BELT OUTER ANCHOR COVER

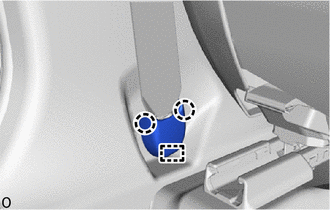

Detach the claw and guide to remove the lap belt outer anchor cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

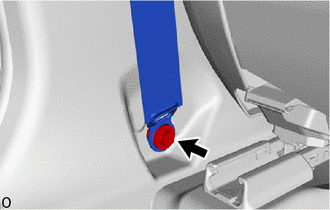

Remove the bolt and the floor anchor of the front seat outer belt assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE LOWER CENTER PILLAR GARNISH LH
Refer to PROCEDURE - Step 35
REMOVE CENTER PILLAR GARNISH LH
Refer to PROCEDURE - Step 37

REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH

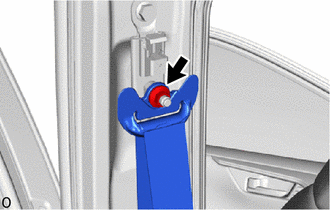

Remove the nut and the shoulder anchor of the front seat outer belt assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

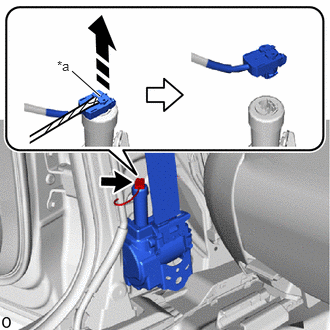

Using a thin-bladed screwdriver, pull out the locking button to release the lock to disconnect the pretensioner connector as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Locking Button
	Remove in this Direction
	Protective Tape

HINT:

Tape the thin-bladed screwdriver tip before use.

for Front Passenger Seat Belt with Selectable Force Limiter:

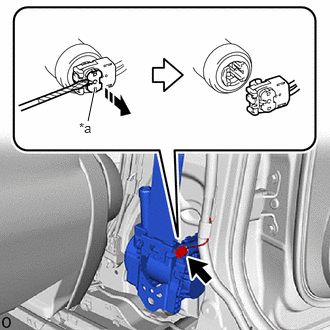

Using a thin-bladed screwdriver, pull out the locking button to release the lock to disconnect the selectable force limiter connector as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Locking Button
	Remove in this Direction
	Protective Tape

HINT:

Tape the thin-bladed screwdriver tip before use.

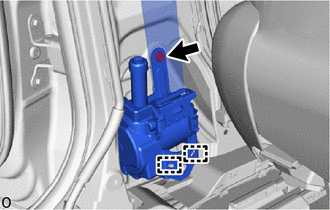

Remove the bolt.

Detach the guide to remove the front seat outer belt assembly LH.

REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

HINT:

Perform this procedure when replacing the front shoulder belt anchor adjuster assembly.

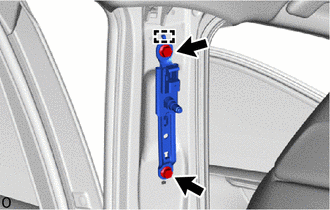

Remove the 2 bolts.

Detach the guide to remove the front shoulder belt anchor adjuster assembly.

REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH

HINT:

Perform this procedure when replacing the front shoulder belt anchor plate sub-assembly LH.

Detach the guide to remove the front shoulder belt anchor plate sub-assembly LH.
