Removal [08/2020 - 10/2022]: Procedure

  1. PRECAUTION

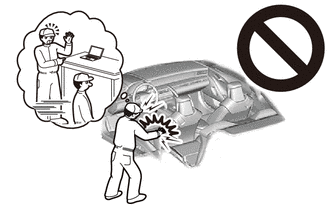

    WARNING:

    Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [08/2020 - ]

    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [11/2018 - ]

  2. REMOVE FRONT SEAT ASSEMBLY LH
    1. for Manual Seat:

      Refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022]

    2. for Power Seat:

      Refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022]

  3. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [11/2018 - ]

  4. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  5. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - Step 1

  6. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2

  7. REMOVE REAR NO. 3 FLOOR BOARD

    Refer to PROCEDURE - Step 4

  8. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 10

  9. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

    Refer to PROCEDURE - Step 21

  10. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 24

  11. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 26

  12. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    HINT:

    Remove the front door opening trim weatherstrip LH so that the center pillar lower garnish LH can be removed.

    Refer to PROCEDURE - Step 3

  13. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 8

  14. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

    HINT:

    Remove the rear door opening trim weatherstrip LH so that the center pillar lower garnish LH and rear seat No. 3 side garnish LH can be removed.

    Refer to PROCEDURE - Step 2

  15. REMOVE OUTER LAP BELT ANCHOR COVER

    Refer to PROCEDURE - Step 32

  16. REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 16 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 16 [12/2021 - 10/2022]

  17. REMOVE LOWER CENTER PILLAR GARNISH LH

    Refer to PROCEDURE - Step 35

  18. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 39

  19. REMOVE TETHER ANCHOR BRACKET SET

    Refer to PROCEDURE - Step 41

  20. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

    Refer to PROCEDURE - Step 42

  21. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 43

  22. REMOVE REAR NO. 2 SPEAKER ASSEMBLY (w/ Woofer)

    Refer to PROCEDURE - Step 18

  23. REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

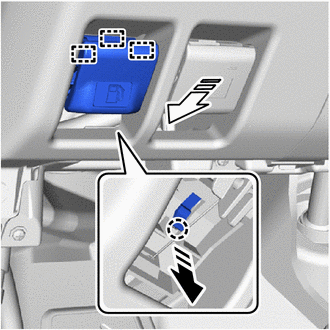

    1. Detach the claw and guide to remove the fuel lid lock open lever sub-assembly in the direction indicated by the arrow as shown in the illustration.
      GTY856207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Detach the clamp and disconnect the fuel lid lock open lever sub-assembly from the fuel lid lock control cable assembly.
      GTY843900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE FUEL FILLER OPENING LID LOCK RETAINER

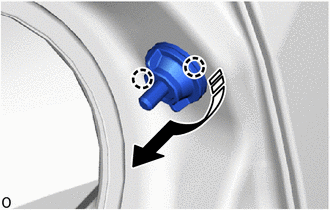

    1. Rotate the fuel filler opening lid lock retainer 90° clockwise and detach the claw as shown in the illustration.
      GTY854276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

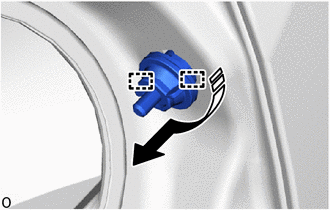

    2. Rotate the fuel filler opening lid lock retainer a further 90° and detach the guide, then pull out the fuel filler opening lid lock retainer as shown in the illustration.
      GTY869446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

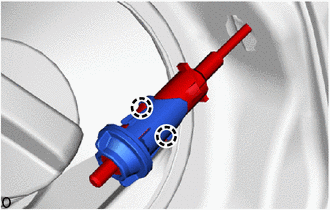

    3. Detach the claw and remove the fuel filler opening lid lock retainer.
      GTY887571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY
    1. Partially remove the floor carpet.

      HINT:

      It is not necessary to fully remove the floor carpet. Partially remove it so that the fuel lid lock control cable sub-assembly can be removed.

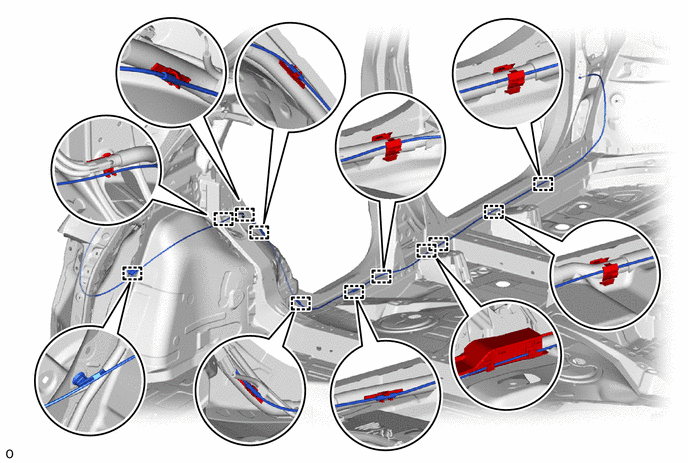

    2. Detach the clamp and remove the fuel lid lock control cable sub-assembly as shown in the illustration.
      GTY937050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
