Removal [11/2018 - ]: Procedure

  1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 2

  3. REMOVE BENCH TYPE REAR SEAT CUSHION COVER

    Refer to PROCEDURE - Step 1

  4. REMOVE REAR SEAT CUSHION HEATER ASSEMBLY LH
    1. Detach the clamp.

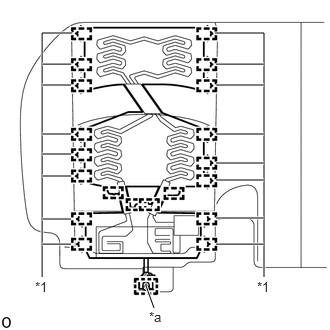

      GTY944755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Tag Pin
      *a Clamp
    2. Remove the 20 tag pins and rear seat cushion heater assembly LH from the bench type rear seat cushion cover.
      NOTE:

      Be careful not to damage the bench type rear seat cushion cover and rear seat cushion heater assembly.

  5. REMOVE REAR SEAT CUSHION HEATER ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.
