Removal [11/2018 - ]: Procedure

  1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)

    Refer to PROCEDURE - Step 3

  5. REMOVE REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR SEAT HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 4

  7. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 5

  8. REMOVE REAR LOWER SEATBACK LOCK BEZEL LH (for LH Side)

    Refer to PROCEDURE - Step 6

  9. REMOVE REAR UPPER SEATBACK LOCK BEZEL LH (for LH Side)

    Refer to PROCEDURE - Step 7

  10. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 8

  11. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for LH Side)

    Refer to PROCEDURE - Step 9

  12. REMOVE SEPARATE TYPE REAR SEATBACK COVER LH (for LH Side)

    Refer to PROCEDURE - Step 10

  13. REMOVE REAR SEATBACK HEATER ASSEMBLY LH (for LH Side)

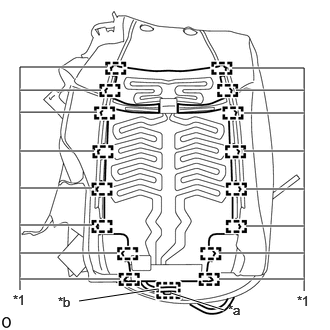

    1. Detach the clamp.
      GTY868690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Tag Pin
      *a Clamp
      *b Slit
    2. Pass the wire harness of rear seatback heater assembly LH through the slit of separate type rear seatback cover LH.
    3. Remove the 16 tag pins and rear seatback heater assembly LH from the separate type rear seatback cover LH.
      NOTE:

      Be careful not to damage the separate type rear seatback cover and rear seatback heater assembly.

  14. REMOVE SEAT BELT ANCHOR COVER CAP (for RH Side)

    Refer to PROCEDURE - Step 14

  15. REMOVE REAR SEAT SHOULDER BELT COVER (for RH Side)

    Refer to PROCEDURE - Step 15

  16. REMOVE REAR LOWER SEATBACK LOCK BEZEL RH (for RH Side)

    Refer to PROCEDURE - Step 16

  17. REMOVE REAR UPPER SEATBACK LOCK BEZEL RH (for RH Side)

    Refer to PROCEDURE - Step 17

  18. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 18

  19. REMOVE CENTER ARMREST HINGE COVER (for RH Side)

    Refer to PROCEDURE - Step 19

  20. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 20

  21. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for RH Side)

    Refer to PROCEDURE - Step 21

  22. REMOVE SEPARATE TYPE REAR SEATBACK COVER RH (for RH Side)

    Refer to PROCEDURE - Step 22

  23. REMOVE REAR SEATBACK HEATER ASSEMBLY RH (for RH Side)

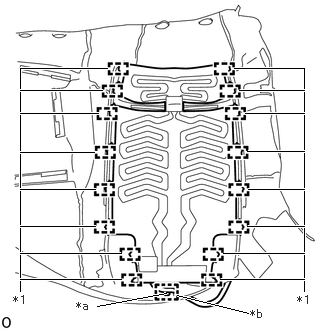

    1. Detach the clamp.
      GTY862927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Tag Pin
      *a Clamp
      *b Slit
    2. Pass the wire harness of rear seatback heater assembly RH through the slit of separate type rear seatback cover RH.
    3. Remove the 16 tag pins and rear seatback heater assembly RH from the separate type rear seatback cover RH.
      NOTE:

      Be careful not to damage the separate type rear seatback cover and rear seatback heater assembly.
