Reassembly [09/2016 - ]: Procedure

  1. INSTALL HOOD STAY BRACKET
    1. Engage the guide.

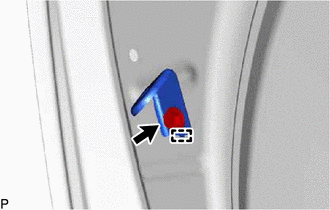

      GTY730735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the hood stay bracket with the bolt.
  2. INSTALL HOOD SUPPORT ASSEMBLY
    1. Engage the 3 claws to install the hood support assembly.

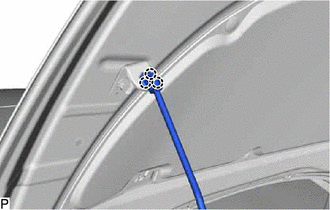

      GTY730736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL HOOD STAY HOLDER
    1. Engage the 2 claws to install the hood stay holder.

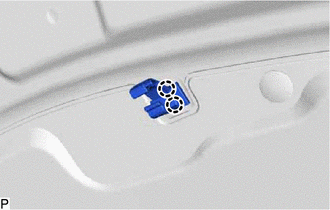

      GTY730731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT WASHER HOSE ASSEMBLY
    1. Engage the grommet.

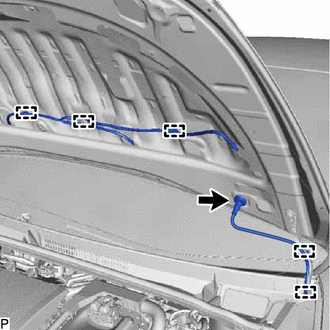

      GTY730732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 5 clamps to connect the washer hose assembly.
  5. INSTALL WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. INSPECT WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  7. ADJUST WASHER NOZZLE SUB-ASSEMBLY

    Refer to ADJUSTMENT [09/2016 - ]

  8. INSTALL HOOD INSULATOR
    1. Engage the 2 guides.

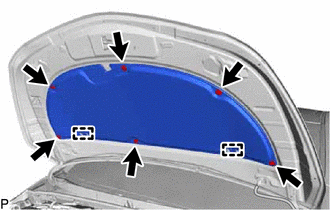

      GTY730730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the hood insulator with 6 new hood insulator clips.
