On-Vehicle Inspection [09/2016 - ]: Procedure
- INSPECT WASHER NOZZLE SUB-ASSEMBLY
- Operate the washer nozzle sub-assemblies and check the position that the washer fluid contacts the windshield.
Standard

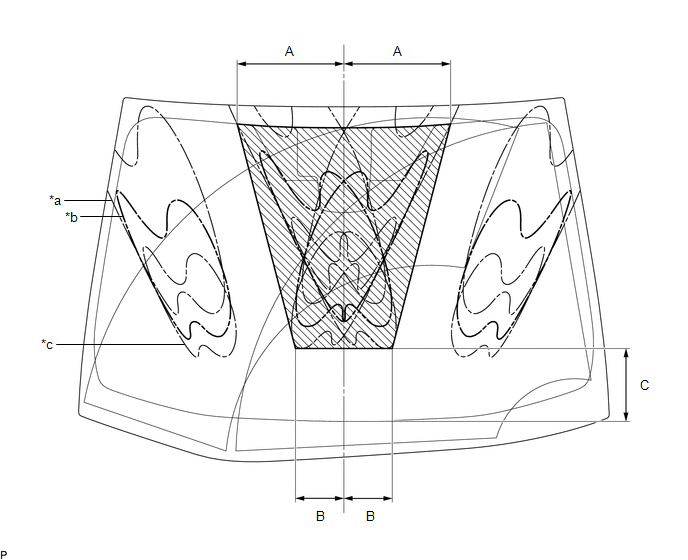

Washer fluid contacts the windshield in the areas shown in the illustration.
*a Upper Limit *b Standard *c Lower Limit - - Measurement - - Standard Measurement
Area Measurement Area Measurement A 286.0 mm (11.3 in.) B 129.8 mm (5.11 in.) C 183.8 mm (7.24 in.) - - HINT:
If the result is not as specified, replace the washer nozzle sub-assembly.
- Operate the washer nozzle sub-assemblies and check the position that the washer fluid contacts the windshield.
