Removal [09/2016 - 07/2020]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2016 - 01/2018] , or refer to PRECAUTION [01/2018 - 05/2019] , or refer to PRECAUTION [05/2019 - ]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2016 - 05/2019] , or refer to INITIALIZATION [05/2019 - 07/2020]

  3. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 3 , or refer to PROCEDURE - Step 3 [05/2019 - 07/2020]

  4. REMOVE REAR ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 4 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 4 [05/2019 - 07/2020]

  5. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 5 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 5 [05/2019 - 07/2020]

  6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 6 [05/2019 - 07/2020]

  7. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP WITH REAR DOOR NO. 2 VENT SEAL

    Refer to PROCEDURE - Step 7 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 7 [05/2019 - 07/2020]

  8. REMOVE REAR DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 12 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 12 [05/2019 - 07/2020]

  9. REMOVE REAR DOOR PANEL PROTECTOR

    Refer to PROCEDURE - Step 13 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 13 [05/2019 - 07/2020]

  10. REMOVE REAR DOOR NO. 2 SERVICE HOLE COVER

    Refer to PROCEDURE - Step 14 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 14 [05/2019 - 07/2020]

  11. REMOVE REAR DOOR GLASS RUN

    Refer to PROCEDURE - Step 15 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 15 [05/2019 - 07/2020]

  12. DISCONNECT REAR DOOR WEATHERSTRIP
    1. Disconnect the rear door weatherstrip until the screw of the rear door window division bar sub-assembly is visible.
  13. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 18 [05/2019 - 07/2020]

  14. REMOVE REAR DOOR QUARTER WINDOW GLASS

    Refer to PROCEDURE - Step 19 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 19 [05/2019 - 07/2020] [05/2019 - 07/2020]

  15. REMOVE REAR DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 20 [05/2019 - 07/2020]

  16. REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY

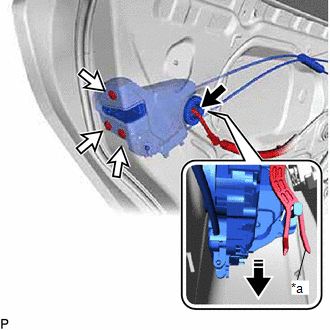

    1. Disconnect the connector.
      GTY541270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Release Plate
      Remove in this Direction
    2. Using a T30 "TORX" socket wrench, remove the 3 screws.
    3. Move the rear door lock with motor assembly downward to disconnect it from the release plate of the rear door outside handle frame sub-assembly, and remove the rear door lock with motor assembly.
    4. When reusing the rear door lock with motor assembly:

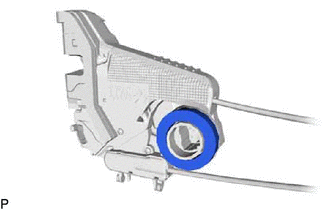

      1. Remove the door lock wiring harness seal from the rear door lock with motor assembly.
        GTY602434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

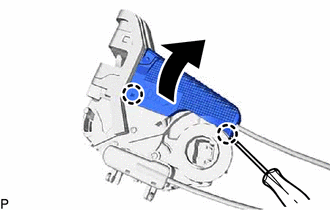

    1. Using a screwdriver, disengage the 2 claws to open the cover as shown in the illustration.
      GTY560710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

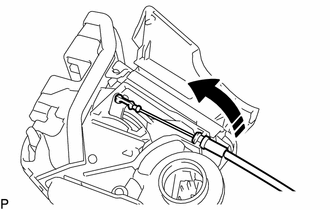

    2. Remove the rear door lock remote control cable assembly as shown in the illustration.
      GTY543447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  18. REMOVE REAR DOOR INSIDE LOCKING CABLE ASSEMBLY

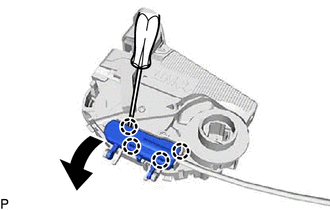

    1. Using a screwdriver, disengage the 4 claws to open the cover as shown in the illustration.
      GTY560703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

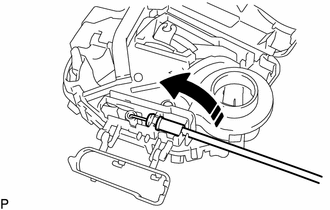

    2. Remove the rear door inside locking cable assembly as shown in the illustration.
      GTY602574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
