Removal [09/2016 - ]: Procedure

REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG
Refer to PROCEDURE - Step 3 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 3 [05/2019 - 07/2020] , or refer to PROCEDURE - Step 3 [07/2020 - ]
REMOVE REAR ARMREST ASSEMBLY
Refer to PROCEDURE - Step 4 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 4 [05/2019 - 07/2020] , or refer to PROCEDURE - Step 4 [07/2020 - ]
REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL
Refer to PROCEDURE - Step 5 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 5 [05/2019 - 07/2020] , or refer to PROCEDURE - Step 5 [07/2020 - ]
REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 6 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 6 [05/2019 - 07/2020] , or refer to PROCEDURE - Step 6 [07/2020 - ]
REMOVE REAR DOOR INNER GLASS WEATHERSTRIP WITH REAR DOOR NO. 2 VENT SEAL
Refer to PROCEDURE - Step 7 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 7 [05/2019 - 07/2020] , or refer to PROCEDURE - Step 7 [07/2020 - ]

REMOVE REAR SPEAKER ASSEMBLY

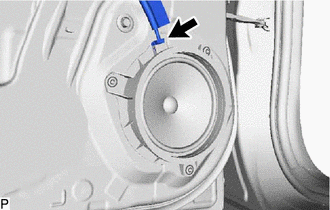

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

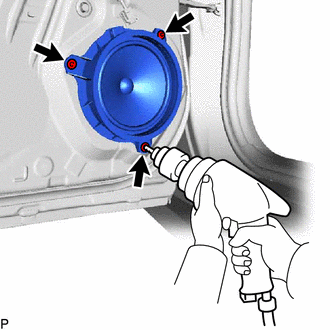

Using a drill bit with a diameter of less than 5 mm (0.197 in.), drill out the 3 rivet heads.

NOTE:

Do not touch the speaker cone.
Do not drill the rivet at an angle as this will cause damage to the drill and rivet installation hole. Line up the drill with the rivet, and carefully drill out the rivet head.
Be careful as the drilled rivet will be very hot.

Continue drilling and push out the remaining rivet fragments.
Using a vacuum cleaner, remove the rivet fragments and shavings from the inside of the door.

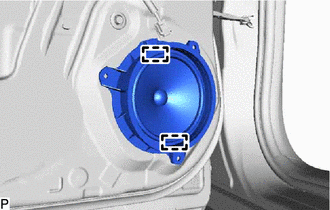

Disengage the 2 guides to remove the rear speaker assembly.
