Removal [08/2020 - 08/2021]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

PRECAUTION
NOTE:
After turning the engine switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Refer to PRECAUTION [04/2018 - ]
REMOVE LUGGAGE TRIM SERVICE HOLE COVER (for HV Model)
Refer to PROCEDURE - Step 2

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

for A25A-FKS:

Refer to PROCEDURE - Step 3

for 2GR-FKS:

Refer to PROCEDURE - Step 2

for A25A-FKS:

Refer to PROCEDURE - Step 2

WARNING:

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
If an airbag deploys for any reason, it may cause a serious injury.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE SPARE WHEEL COVER ASSEMBLY (for Gasoline Model)
w/ Seat Heater System:

Refer to PROCEDURE - Step 1
REMOVE LUGGAGE COMPARTMENT INNER TRIM PAD (for Gasoline Model)
w/ Seat Heater System:

Refer to PROCEDURE - Step 5
DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Gasoline Model)
Refer to PROCEDURE - Step 7
REMOVE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)
Refer to PROCEDURE - Step 8
REMOVE REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)
Refer to PROCEDURE - Step 9
REMOVE FRONT DOOR SCUFF PLATE
Refer to PROCEDURE - Step 3
DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP
1. Disconnect the front door opening trim weatherstrip.
REMOVE REAR DOOR SCUFF PLATE (for Gasoline Model)
Refer to PROCEDURE - Step 7
REMOVE REAR DOOR SCUFF PLATE (for HV Model)
Refer to PROCEDURE - Step 8
DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
1. Disconnect the rear door opening trim weatherstrip.

REMOVE LAP BELT OUTER ANCHOR COVER

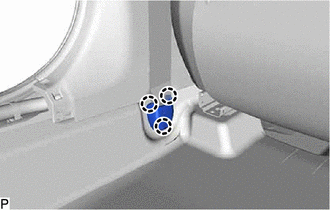

Disengage the 3 claws to remove the lap belt outer anchor cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

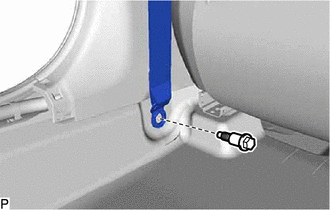

Remove the bolt to disconnect the floor anchor of the front seat outer belt assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE CENTER PILLAR LOWER GARNISH
Refer to PROCEDURE - Step 12
REMOVE CENTER PILLAR UPPER GARNISH
Refer to PROCEDURE - Step 13

REMOVE FRONT SEAT OUTER BELT ASSEMBLY

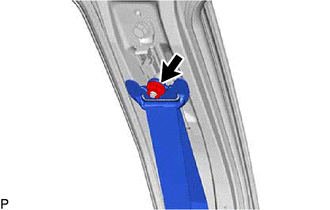

Remove the nut and disconnect the shoulder anchor of the front seat outer belt assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

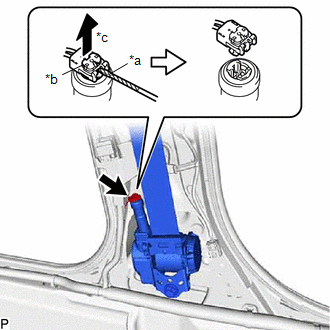

Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.

*a	Protective Tape
*b	Locking Button
*c	Release

HINT:

Tape the screwdriver tip before use.

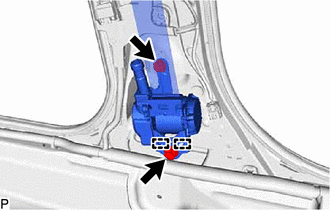

Remove the 2 bolts.

Disengage the 2 guides to remove the front seat outer belt assembly.

REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

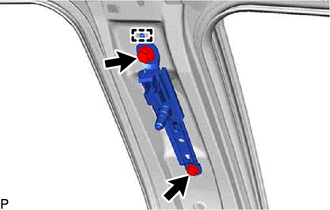

Remove the 2 bolts.

Disengage the guide to remove the front shoulder belt anchor adjuster assembly.
