Removal [04/2018 -]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

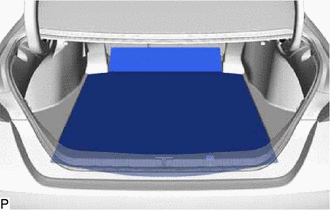

  1. REMOVE SPARE WHEEL COVER ASSEMBLY
    1. Remove the spare wheel cover assembly.
      GTY863299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE BAGGAGE HOLDER NET
    1. Disengage the 4 guides to remove the baggage holder net.

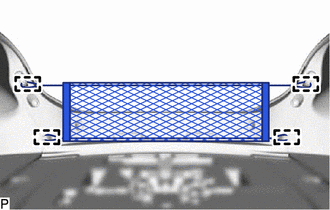

      GTY863307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

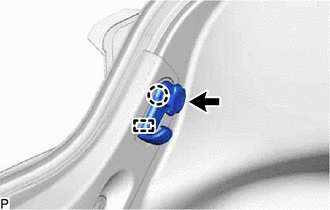

    1. Disengage the claw and guide to remove the No. 1 luggage compartment trim hook as shown in the illustration.
      GTY851672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push

      HINT:

      Use the same procedure for the RH side and LH side.

  4. REMOVE REAR FLOOR FINISH PLATE
    1. Remove the 4 clips.

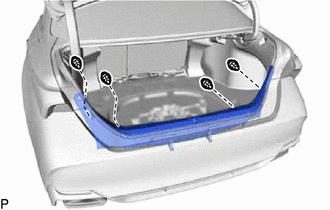

      GTY863310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

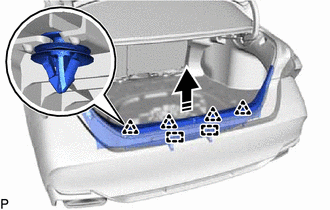

    2. Disengage the 4 clips and 2 guides to remove the rear floor finish plate as shown in the illustration.
      GTY876044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE LUGGAGE COMPARTMENT INNER TRIM PAD
    1. Remove the luggage compartment inner trim pad.
      GTY863306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE LUGGAGE COMPARTMENT TRIM INNER COVER RH (for Gasoline Model)
    1. Using a clip remover, remove the clip (A).

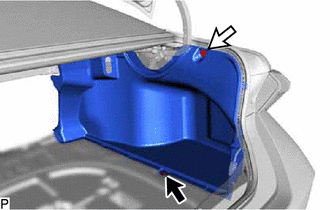

      GTY861193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Clip (A)
      Clip (B)
    2. Remove the clip (B).
    3. Disengage the 2 fasteners to remove the luggage compartment trim inner cover RH.

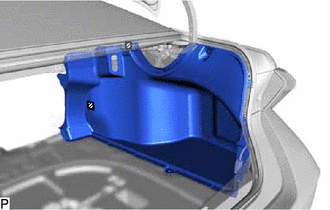

      GTY869312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
  7. REMOVE LUGGAGE TRIM SERVICE HOLE COVER (for HV Model)

    Refer to PROCEDURE - Step 2 [04/2018 - 08/2019] , or refer to PROCEDURE - Step 2 [08/2019 - 08/2021] , or refer to PROCEDURE - Step 2 [08/2021 -]

  8. REMOVE LUGGAGE COMPARTMENT TRIM INNER COVER RH (for HV Model)

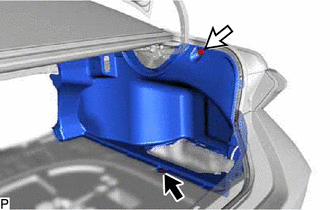

    1. Using a clip remover, remove the clip (A).
      GTY864883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Clip (A)
      Clip (B)
    2. Remove the clip (B).
    3. Disengage the 2 fasteners to remove the luggage compartment trim inner cover RH.

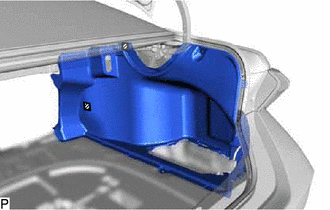

      GTY874647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
  9. REMOVE LUGGAGE COMPARTMENT TRIM INNER COVER LH
    1. Using a clip remover, remove the clip (A).

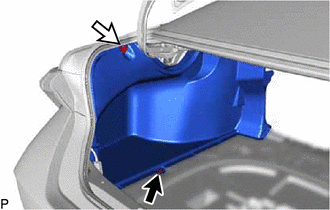

      GTY878169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Clip (A)
      Clip (B)
    2. Remove the clip (B).
    3. Disengage the 2 fasteners to remove the luggage compartment trim inner cover LH.

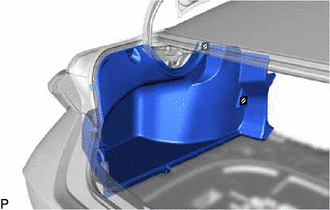

      GTY884531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
  10. REMOVE BACK DOOR STAY SPRING

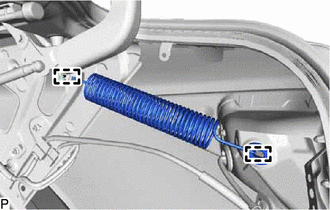

    1. Disengage the 2 guides to remove the back door stay spring.
      GTY932624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  11. REMOVE LUGGAGE DOOR HINGE SUPPORT BUSH

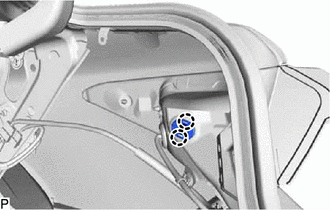

    1. Disengage the 2 claws to remove the luggage door hinge support bush.
      GTY867474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  12. REMOVE LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY
    NOTE:
    • Avoid touching the piston rod as much as possible to prevent foreign matter from attaching to it. Be sure to hold the cylinder while servicing.
    • Do not wear cotton gloves or other similar materials when handling the piston rod. Fibers may attach to the rod and result in gas leaks.
    • Do not apply any horizontal load to the luggage compartment door support assembly in order to prevent the piston rod from deforming.

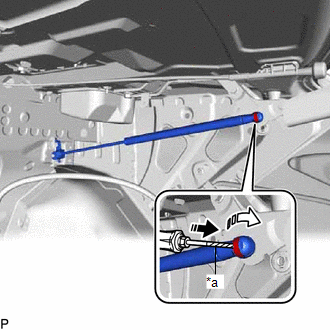

    1. Using a screwdriver with its tip wrapped with protective tape, slightly raise the stop ring as shown in the illustration.
      GTY917360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction (1)
      Remove in this Direction (2)
      NOTE:
      • Do not remove the stop rings from the luggage compartment door support assembly. Raise the stop ring just enough to allow the ball joint to be disengaged.
      • Do not reuse the luggage compartment door support assembly if the stop ring has been removed.
    2. Disengage the ball joint.
      NOTE:

      Remove the luggage compartment door support assembly while supporting the luggage door by hand.

    3. Disengage the guide as indicated by the arrows, in the order shown in the illustration to remove the luggage compartment door support assembly.

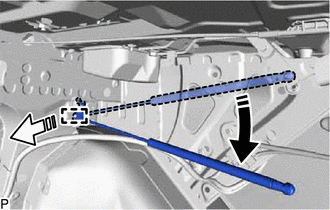

      GTY944723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
