Installation [11/2020 - ]: Procedure

  1. INSTALL FRONT STABILIZER BAR

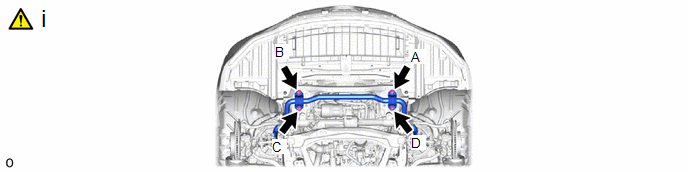

    1. GTY979655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the front stabilizer bar with the 4 bolts.

        Torque: 120 N.m (1224 kgf/cm, 89 ft.lbf)

        NOTE:

        Temporarily tighten the bolt (A), and then fully tighten the 4 bolts in the order of (B), (C), (D), and (A).

  2. INSTALL FRONT STABILIZER LINK ASSEMBLY LH
    1. GTY979733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the front stabilizer link assembly LH to the lower No. 2 suspension arm assembly LH and front stabilizer bar with the 2 nuts.

        Torque: 150 N.m (1530 kgf/cm, 111 ft.lbf)

        HINT:

        If the ball joint turns together with the nut, use a 8 mm hexagon wrench to hold the stud bolt.

  3. INSTALL FRONT STABILIZER LINK ASSEMBLY RH
    1. Perform the same procedure as for the LH side.
  4. INSTALL FRONT COMPARTMEMT UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 163 [11/2020 - 12/2022] , or refer to PROCEDURE - Step 163 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 163 [12/2023 - ]

  5. INSTALL FRONT LOWER SUSPENSION MEMBER PROTECTOR

    Refer to PROCEDURE - Step 164 [11/2020 - 12/2022] , or refer to PROCEDURE - Step 164 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 164 [12/2023 - ]

  6. INSTALL FRONT COMPARTMENT UNDER COVER
  7. INSTALL FRONT WHEEL

    Refer to INSTALLATION [11/2020 - ]
