Removal [11/2020 - 11/2021]: Procedure

PRECAUTION

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

DISABLE BRAKE CONTROL

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRAIN BRAKE FLUID

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

If brake fluid leaks onto any painted surface, immediately wash it off.

REMOVE REAR DISC BRAKE FITTING KIT

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

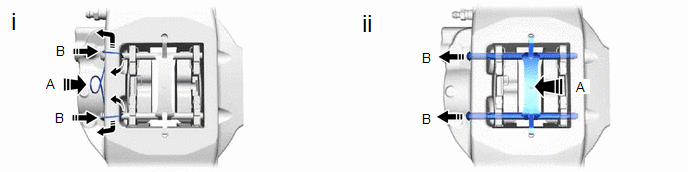

While pressing the area labeled A, push the hole pin labeled B toward the rear disc brake cylinder assembly LH, and remove the pin hold clip.
While pressing the area labeled A, remove the No. 1 anti-rattle spring and 2 hole pins.

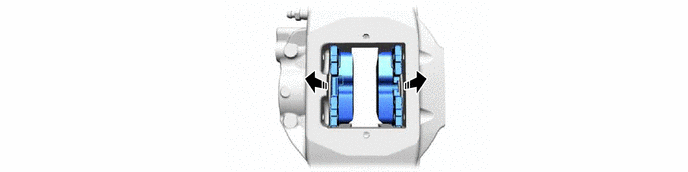

REMOVE REAR DISC BRAKE PAD KIT

NOTE:

Be sure to inspect the rear disc when replacing the rear disc brake pads with new ones.

REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM

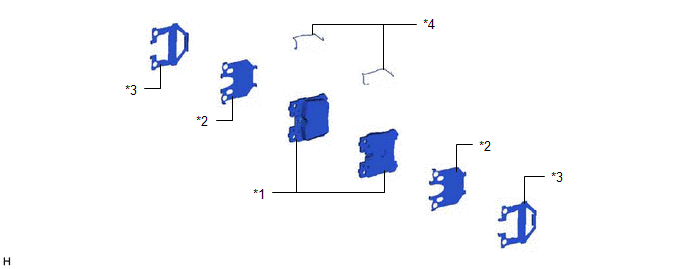

*1	Rear Disc Brake Pad	*2	No. 1 Anti-Squeal Shim
*3	No. 2 Anti-Squeal Shim	*4	Inner Anti-Rattle Spring
