Installation [11/2020 - 12/2022]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: When replacing the rear disc brake pads with new ones, make sure to replace the rear disc brake anti-squeal shim kit at the same time. Do not apply lubricants to the lining surface of the brake pad. Install the anti-squeal shims in the correct position and direction.

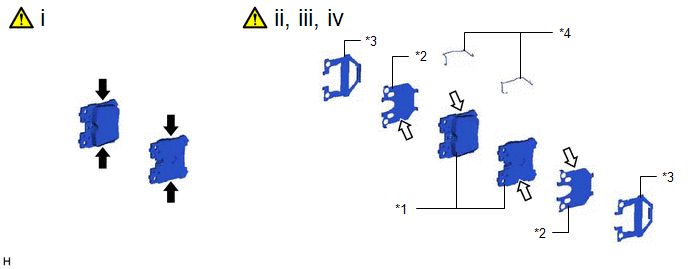

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear Disc Brake Pad	*2	No. 1 Anti-Squeal Shim
   *3	No. 2 Anti-Squeal Shim	*4	Inner Anti-Rattle Spring
   	Grease (Part No. 90999-94254)		Brake Shim Grease (Part No. 08887-80409)

   1. Apply a light coat of grease (Part No. 90999-94254) to the rear disc brake pads as shown in the illustration.
      NOTE:

      When applying grease, use the grease enclosed with a rear disc brake pad kit or supplied grease (Part No. 90999-94254) or equivalent.

   2. Apply brake shim grease (Part No. 08887-80409) to the rear disc brake pads and No. 1 anti-squeal shims at the positions shown in the illustration.
      NOTE:

      • Use the grease supplied with the anti-squeal shim kit or brake shim grease (Part No. 08887-80409) or equivalent.
      • Do not apply grease between the No. 1 and No. 2 anti-squeal shims.
   3. Install the inner anti-rattle springs to each of the rear disc brake pads.
   4. Install the No. 1 and No. 2 anti-squeal shims to each of the rear disc brake pads.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WARNING: Be careful not to get pinched by the disc brake cylinder assembly or other parts when installing the rear disc brake pads.

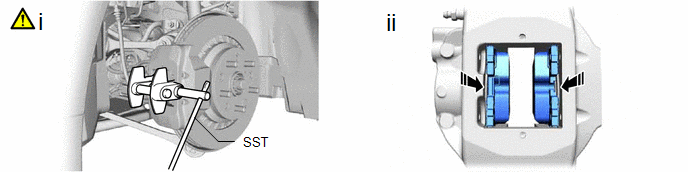

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Using SST, push back the rear disc brake piston.
      • SST: 09719-77010
      NOTE:

      • Make sure the brake fluid does not overflow from the reservoir.
      • Do not forcibly push in the rear disc brake piston.
   2. Install the 2 rear disc brake pads to the rear disc brake cylinder assembly LH.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

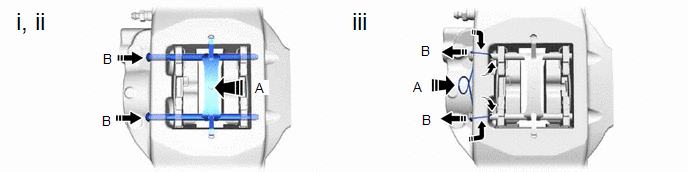

   1. Install the No. 1 anti-rattle spring to the rear disc brake cylinder LH.
   2. While pressing the area (A), install the 2 hole pins (B).
   3. While pressing the area (A), slightly pull out the hole pin (B) from the rear disc brake cylinder assembly LH, and install the pin hold clip.

Refer to ON-VEHICLE INSPECTION [11/2020 - ]

Refer to INSTALLATION [11/2020 - ]

Refer to WORK PROCEDURE [11/2020 - 12/2022]

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [11/2020 - 11/2021] , or refer to AUTOMATIC LEARNING CHART [11/2021 - 12/2023]
