Removal [12/2022 - 12/2023]: Procedure

  1. REMOVE RADIATOR WITH CONDENSER

    Refer to REMOVAL [12/2022 - 12/2023]

  2. REMOVE REAR RADIATOR SIDE AIR GUIDE PLATE LH

    Refer to PROCEDURE - Step 38

  3. REMOVE NO. 1 DISCHARGE HOSE SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 39
  4. REMOVE CONDENSER ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3
  5. REMOVE NO. 1 FC INVERTER COOLING PIPE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 41
  6. REMOVE NO. 5 FC INVERTER COOLING PIPE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 42
  7. REMOVE EV RADIATOR ASSEMBLY

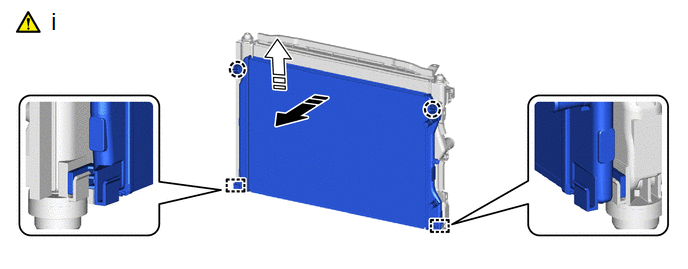

    1. GTY1003956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      1. Detach the claw and guide and remove the EV radiator assembly as shown in the illustration.
        NOTE:

        Do not damage the EV radiator assembly and radiator assembly when removing the EV radiator assembly.
