Installation [11/2020 - 11/2021]: Procedure

  1. INSTALL WIRE HARNESS CLAMP BRACKET
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    HINT: Perform this procedure only when replacement of the wire harness clamp bracket is necessary.

    Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  2. INSTALL FLOOR UNDER WIRE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

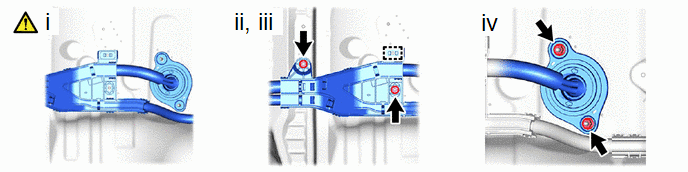

    1. GTY1003335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Insert the floor under wire into the floor panel hole and engage the grommet.
      2. Install a new stud clamp.
      3. Install the 2 nuts.

        Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

      4. Install the 2 nuts.

        Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

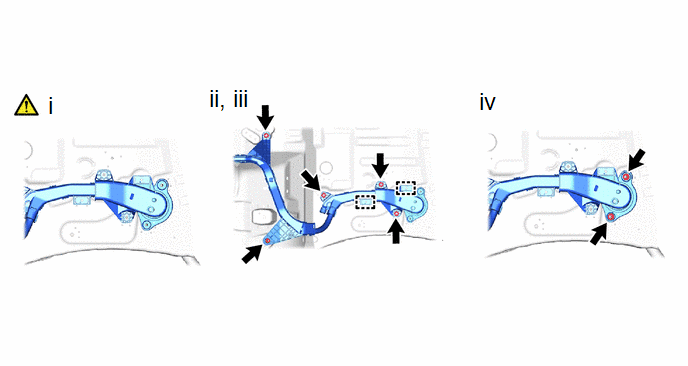

    2. GTY1004123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Insert the floor under wire into the floor panel hole and engage the grommet.
      2. Install 2 new stud clamps.
      3. Install the 5 nuts.

        Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

      4. Install the 2 nuts.

        Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

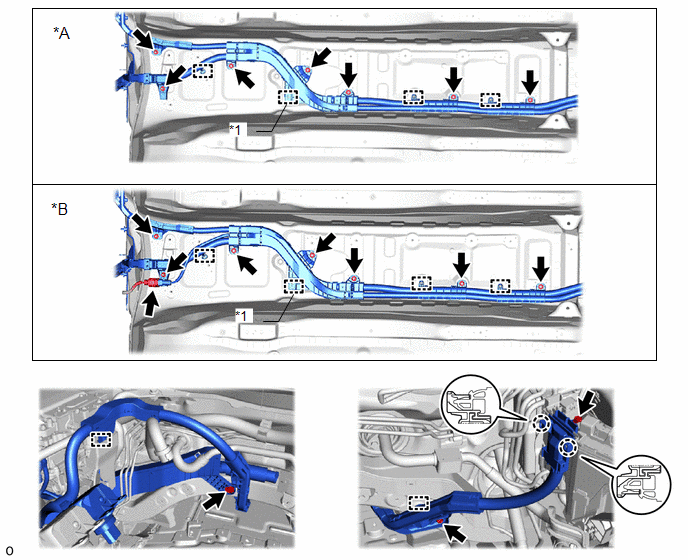

    3. GTY1004349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Advanced Drive *B w/ Advanced Drive
      *1 Stud Clamp - -

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

    4. GTY1001830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

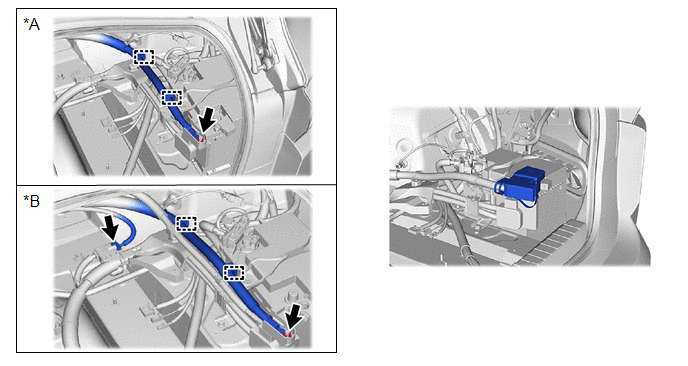

    5. GTY1003574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Advanced Drive *B w/ Advanced Drive

      Torque: 7.55 N.m (77 kgf/cm, 67 in.lbf)

  3. INSTALL NO. 3 RELAY BLOCK COVER
  4. INSTALL NO. 2 BATTERY PACK WIRE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

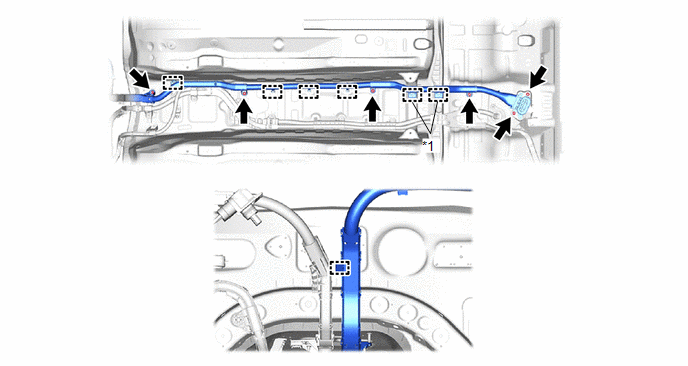

    1. GTY1004491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Stud Clamp - -

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

    2. Fig 1: No. 2 Battery Pack Wire Tightening Sequence

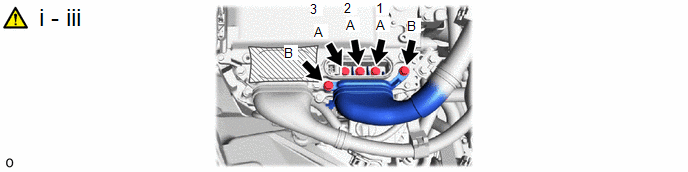

      GTY1004398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Temporarily install the No. 2 battery pack wire to the inverter with converter assembly with the 5 bolts.
        NOTE:
        • Do not allow any foreign matter or water to enter the inverter with converter assembly.
        • Do not touch the connector waterproofing rubber or terminals.
        • Do not damage the terminals, connector housings or inverter with converter assembly when connecting them.
      2. Using an insulated tool, tighten the 3 bolts (A) in the order shown in the illustration.

        Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

      3. Using an insulated tool, tighten the 2 bolts (B).

        Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  5. INSTALL INVERTER TERMINAL COVER
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 17
  6. INSTALL REAR TRACTION MOTOR WIRE CLAMP BRACKET

    Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  7. INSTALL WIRE HARNESS CLAMP BRACKET
  8. INSTALL NO. 9 WIRING HARNESS PROTECTOR

    Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  9. INSTALL WIRE HARNESS CLAMP BRACKET

    Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  10. INSTALL WIRE HARNESS CLAMP BRACKET

    Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  11. INSTALL NO. 6 FLOOR MAT
  12. INSTALL NO. 1 ROOM PARTITION PAD
  13. INSTALL BENCH TYPE REAR SEATBACK ASSEMBLY

    Refer to INSTALLATION [11/2020 - ]

  14. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER RH
  15. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER LH
  16. INSTALL REAR FLOOR FINISH PLATE
  17. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
  18. INSTALL TOOL BOX
  19. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH
  20. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
  21. INSTALL FC CONVERTER WITH FC STACK ASSEMBLY

    Refer to INSTALLATION [11/2020 - 12/2022]

  22. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY

    Refer to INSTALLATION [11/2020 - 12/2022]

  23. INSTALL NO. 3 HYDROGEN TANK ASSEMBLY (for 3 Hydrogen Tank)

    Refer to INSTALLATION [11/2020 - 12/2022]

  24. INSTALL NO. 2 HYDROGEN TANK ASSEMBLY

    Refer to INSTALLATION [11/2020 - 12/2022]

  25. INSTALL NO. 1 HYDROGEN TANK ASSEMBLY

    Refer to INSTALLATION [11/2020 - 12/2022]

  26. INSTALL FLOOR UNDER WIRE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  27. INSTALL NO. 4 FC JUNCTION CABLE BRACKET
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

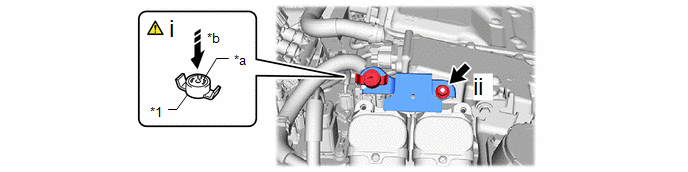

    1. GTY1001642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Battery Cover Lock Striker - -
      *a Button *b Push
      1. Install the battery cover lock striker, then push the button to lock it.
      2. Install the nut.

        Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  28. INSTALL NO. 1 BATTERY PACK WIRE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

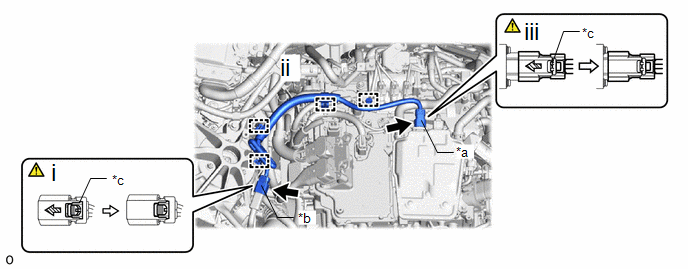

    1. GTY1004495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Connector A *b Connector B
      *c Green-colored Lock - -
      Slide - -
      1. Connect the connector B and slide the green-colored lock as shown in the illustration to lock it securely.
      2. Engage the clamp.
      3. Connect the connector A and slide the green-colored lock as shown in the illustration to lock it securely.
  29. INSTALL FC CONVERTER POWER OUTLET CABLE (INVERTER WITH CONVERTER ASSEMBLY)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 58
  30. INSTALL FC STACK COVER SUB-ASSEMBLY
  31. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to INSTALLATION [11/2020 - ]

  32. INSTALL LOWER RADIATOR AIR DEFLECTOR
  33. INSTALL RADIATOR COVER PLATE
  34. INSTALL UPPER RADIATOR SUPPORT SEAL
  35. INSTALL SERVICE PLUG GRIP

    Refer to INSTALLATION [11/2020 - 12/2022]

  36. FIRST LEAK CHECK
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4
  37. INSTALL NO. 3 FC EXHAUST PIPE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4
  38. SECOND LEAK CHECK
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  39. INSTALL REAR SUSPENSION BRACE COVER
  40. INSTALL NO. 2 DIFFERENTIAL SUPPORT PROTECTOR
  41. INSTALL NO. 1 DIFFERENTIAL SUPPORT PROTECTOR
  42. INSTALL NO. 1 FLOOR UNDER COVER (for 3 Hydrogen Tank)
  43. INSTALL REAR FLOOR SIDE MEMBER COVER RH
  44. INSTALL REAR FLOOR SIDE MEMBER COVER LH
  45. INSTALL NO. 1 FLOOR BOARD SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 29
  46. INSTALL NO. 2 FLOOR BOARD SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 30
  47. INSTALL REAR NO. 3 FLOOR BOARD SUB-ASSEMBLY
  48. INSTALL REAR NO. 4 FLOOR BOARD SUB-ASSEMBLY
