Installation [11/2021 - ]: Procedure

  1. INSTALL NO. 1 CONVERTER BRACKET
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When removing and reinstalling the converter bracket, do not place loads on the AMD bolt, connector, fins, or breather plug.

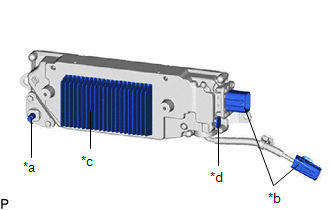

    GTY1166382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. *a: AMD bolt

      *b: Connector

    2. *c: Fins
    3. *d: Breather plug

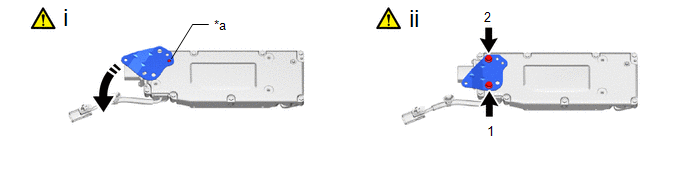

    1. Fig 1: No. 1 Converter Bracket Tightening Sequence
      GTY1163274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Positioning Pin/Hole - -
      1. Align the No. 1 converter bracket positioning hole with the DC/DC converter assembly positioning pin, and rotate in the direction shown in the illustration to align with the bolt hole.
      2. Tighten the 2 bolts in the order shown in the illustration to install the No. 1 converter bracket.

        Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  2. INSTALL NO. 2 CONVERTER BRACKET
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When removing and reinstalling the converter bracket, do not place loads on the AMD bolt, connector, fins, or breather plug.

    GTY1166382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. *a: AMD bolt

      *b: Connector

    2. *c: Fins
    3. *d: Breather plug

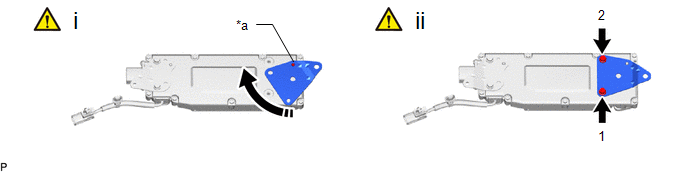

    1. Fig 2: No. 2 Converter Bracket Tightening Sequence
      GTY1163231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Positioning Pin/Hole - -
      1. Align the No. 2 converter bracket positioning hole with the DC/DC converter assembly positioning pin, and rotate in the direction shown in the illustration to align with the bolt hole.
      2. Tighten the 2 bolts in the order shown in the illustration to install the No. 2 converter bracket.

        Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  3. INSTALL DC/DC CONVERTER ASSEMBLY WITH BRACKET
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Wear insulated gloves.

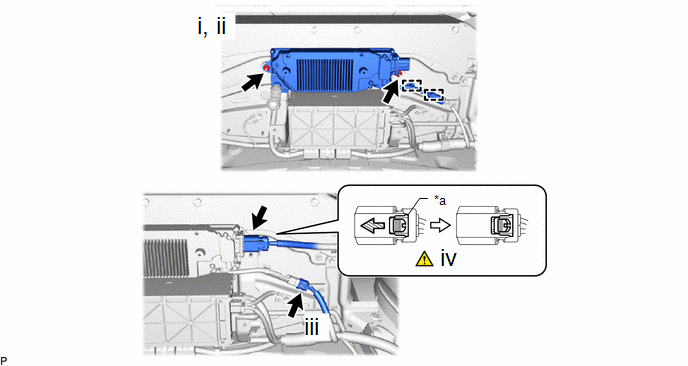

    1. GTY1164045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Green-colored Lock Slide
      1. Install the DC/DC converter assembly with bracket with the 2 nuts.

        Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

      2. Engage the 2 clamps.
      3. Connect the connector and slide the green-colored lock as shown in the illustration to lock it securely.
      4. Connect the connector.
  4. CONNECT NO. 2 LUGGAGE ROOM WIRE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Wear insulated gloves.

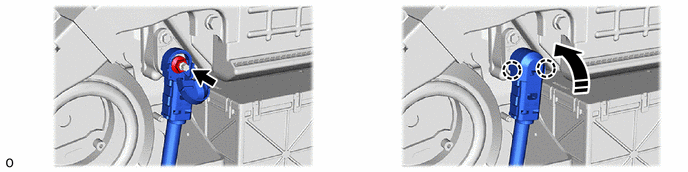

    1. GTY1164675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)

  5. INSTALL DC/DC CONVERTER COOLING EXHAUST DUCT
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1
  6. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER RH
  7. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER LH
  8. INSTALL REAR FLOOR FINISH PLATE
  9. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
  10. INSTALL TOOL BOX
  11. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH
  12. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
  13. CONNECT FC CONVERTER POWER OUTLET CABLE (INVERTER WITH CONVERTER ASSEMBLY)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 58 [11/2021 - 12/2023] , or refer to PROCEDURE - Step 58 [12/2023 - ]
  14. INSTALL FC STACK COVER SUB-ASSEMBLY
  15. INSTALL UPPER RADIATOR SUPPORT SEAL
  16. INSTALL SERVICE PLUG GRIP

    Refer to INSTALLATION [11/2020 - 12/2022] , or refer to INSTALLATION [12/2022 - ]
