Installation [11/2021 - ]: Procedure

  1. INSTALL DC/DC CONVERTER COOLING EXHAUST DUCT

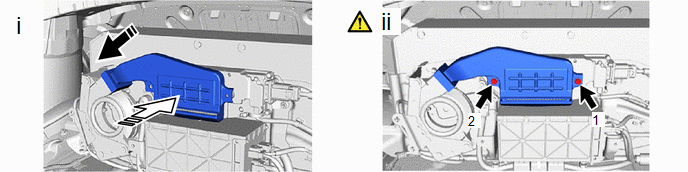

    1. Fig 1: DC/DC Converter Cooling Exhaust Duct Tightening Sequence
      GTY1161829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1) Install in this Direction (2)
      1. Insert the converter cooling exhaust duct in the direction of the arrow shown in the illustration and temporarily install it.
      2. Install the 2 bolts in the order shown in the illustration.

        Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  2. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER RH
  3. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER LH
  4. INSTALL REAR FLOOR FINISH PLATE
  5. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
  6. INSTALL TOOL BOX
  7. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH
  8. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
  9. CONNECT FC CONVERTER POWER OUTLET CABLE (INVERTER WITH CONVERTER ASSEMBLY)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 58 [11/2021 - 12/2023] , or refer to PROCEDURE - Step 58 [12/2023 - ]
  10. INSTALL FC STACK COVER SUB-ASSEMBLY
  11. INSTALL UPPER RADIATOR SUPPORT SEAL
  12. INSTALL SERVICE PLUG GRIP

    Refer to INSTALLATION [11/2020 - 12/2022] , or refer to INSTALLATION [12/2022 - ]
