Installation [11/2020 - 12/2022]: Procedure
- INSTALL NO. 2 FC CONTROL ECU BRACKET
Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)
- INSTALL NO. 1 FC CONTROL ECU BRACKET
Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

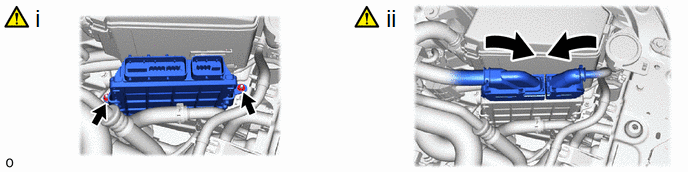

- INSTALL FC CONTROL ECU
- Install the FC control ECU with the 2 nuts.
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)
NOTE:If the FC control ECU is dropped or subjected to a strong impact, replace it with a new one.
- Connect the 2 FC control ECU connectors and lock with the lever.NOTE:
- When connecting connectors, make sure that foreign substances such as mud or water droplets do not adhere to them.
- Securely lock with the lever.
- Install the FC control ECU with the 2 nuts.
- INSTALL UPPER RADIATOR SUPPORT SEAL
Refer to PROCEDURE - Step 178
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to INSTALLATION [11/2020 - 12/2022]
- INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL
Refer to WORK PROCEDURE [11/2020 - 12/2022]
HINT:
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
Refer to AUTOMATIC LEARNING CHART [11/2020 - 11/2021] , or refer to AUTOMATIC LEARNING CHART [11/2021 - 12/2023]
