Removal [11/2020 - ]: Procedure

  1. CAUTIONS FOR COOLANT (TOYOTA GENUINE FC STACK COOLANT (Pre-mixed))
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1
  2. CAUTIONS FOR INTAKE SYSTEM COMPONENTS
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  3 [11/2020 - 11/2021], or see step  3 [11/2021 - 12/2022], or see step  3 [12/2022 - 12/2023], or see step  3 [12/2023 - ]
  3. REMOVE FC STACK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 8 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 8 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 8 [12/2023 - ]

  4. REMOVE FRONT COMPARTMENT UNDER COVER

    Refer to PROCEDURE - Step 18 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 18 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 18 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 18 [12/2023 - ]

  5. REMOVE FRONT LOWER SUSPENSION MEMBER PROTECTOR

    Refer to PROCEDURE - Step 19 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 19 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 19 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 19 [12/2023 - ]

  6. REMOVE FRONT COMPARTMENT UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 20 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 20 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 20 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 20 [12/2023 - ]

  7. REMOVE REAR NO. 4 FLOOR BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 2 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 2 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 2 [12/2023 - ]

  8. DRAIN COOLANT (TOYOTA GENUINE FC STACK COOLANT (Pre-mixed))

    Refer to PROCEDURE - Step 6

  9. REMOVE FC STACK AIR OUTLET HOSE ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  4
  10. REMOVE FC AIR BY-PASS VALVE ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  5
  11. DISCONNECT FC INTERCOOLER HOSE

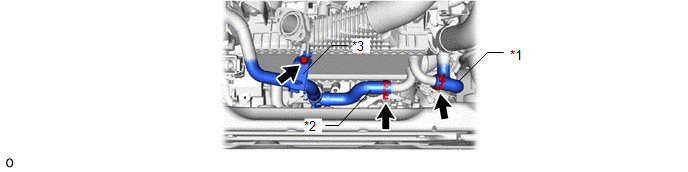

    1. GTY1003674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      No. 1 FC Intercooler Hose

      *1 No. 1 FC Intercooler Hose *2 No. 2 FC Intercooler Hose
      *3 No. 3 Radiator Hose Bracket - -
    2. GTY1003376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

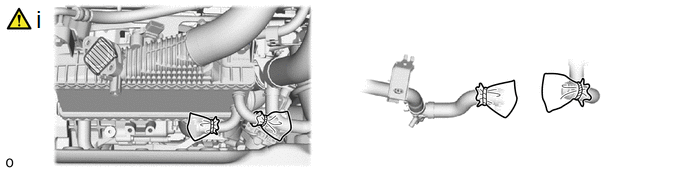

      1. To prevent contamination by foreign matter or water droplets, cover the connecting portions of the No. 1 FC intercooler hose, No. 2 FC intercooler hose and intercooler with sensor assembly with plastic bags.
  12. REMOVE FC STACK AIR INLET HOSE

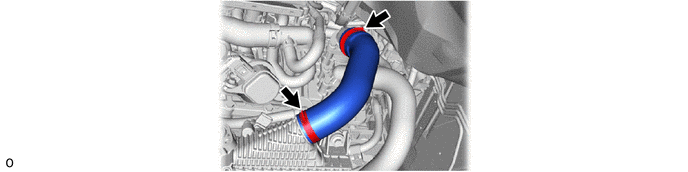

    1. GTY1003106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1003271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

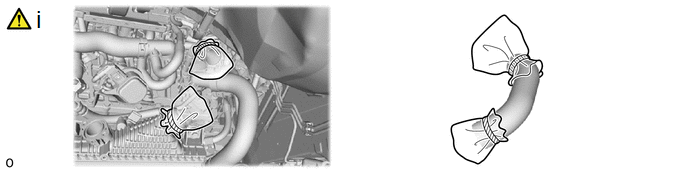

      1. To prevent contamination by foreign matter or water droplets, cover the connecting portions of the FC stack air inlet hose, intercooler with sensor assembly and FC stack air inlet pipe assembly with plastic bags.
  13. REMOVE INTERCOOLER WITH SENSOR ASSEMBLY

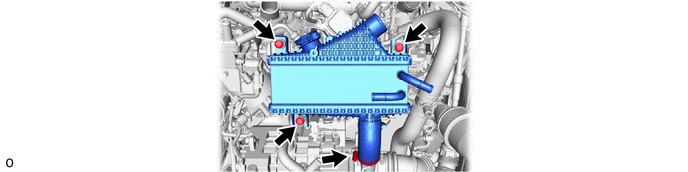

    1. GTY1002920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1003918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

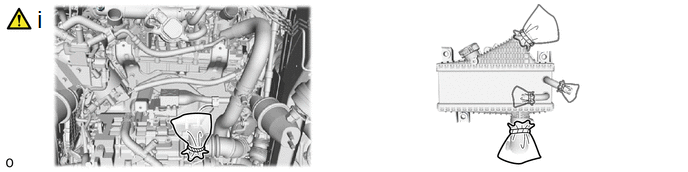

      1. To prevent contamination by foreign matter or water droplets, cover the connecting portions of the air hose and FC air compressor with motor assembly with plastic bags.
  14. REMOVE AIR HOSE
    1. GTY1002917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1003272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. To prevent contamination by foreign matter or water droplets, cover the connecting portions of the air hose and intercooler with sensor assembly with plastic bags.
  15. REMOVE TURBO PRESSURE SENSOR

    Refer to PROCEDURE - Step 3
