Installation [11/2020 - ]: Procedure

1. NOTE: The shapes of the FC air pressure regulator assembly (air pressure regulating valve) and FC air pressure regulator assembly (air sealing valve) are the same. Be careful not to install them incorrectly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Protrusion

   -

   -

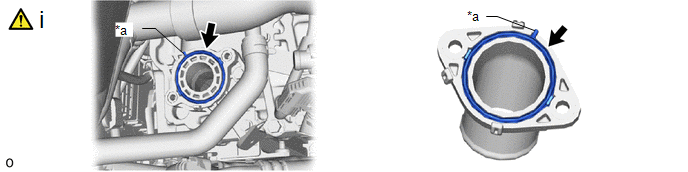

   1. Install the 2 No. 5 FC stack air gaskets to the FC stack air outlet pipe assembly and FC stack air outlet with the protrusions of the No. 5 FC stack air gasket oriented as shown in the illustration.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

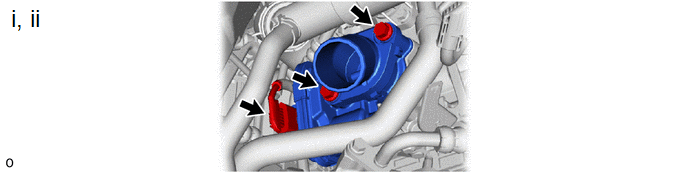

   1. Install the FC stack air outlet pipe assembly and FC air pressure regulator assembly (air pressure regulating valve) with the 2 bolts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

   2. Connect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Do not touch the mesh of the air particulate filter. If the air particulate filter is removed from the FC stack air inlet pipe assembly or is deformed, replace the FC stack air inlet pipe assembly. The shapes of the FC air pressure regulator assembly (air pressure regulating valve) and FC air pressure regulator assembly (air sealing valve) are the same. Be careful not to install them incorrectly.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Air Particulate Filter	-	-
   *a	Protrusion	-	-

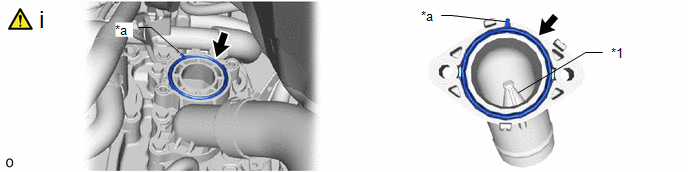

   1. Install the 2 No. 5 FC stack air gaskets to the FC stack air inlet pipe assembly and FC stack air and water inlet with the protrusions of the No. 5 FC stack air gasket oriented as shown in the illustration.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

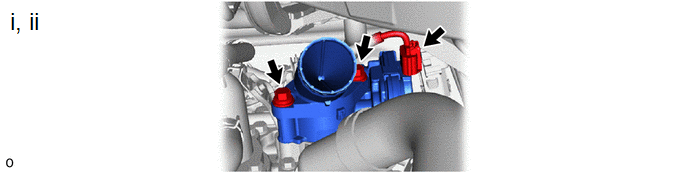

   1. Install the FC stack air inlet pipe assembly and FC air pressure regulator assembly (air sealing valve) with the 2 bolts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

   2. Connect the connector.

Refer to PROCEDURE - Step 163 [11/2020 - 12/2022] , or refer to PROCEDURE - Step 163 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 163 [12/2023 - ]
