Installation [11/2020 - ]: Procedure

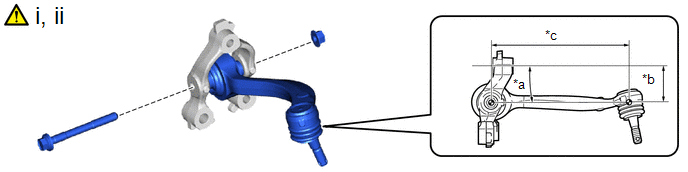

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	4.84°	*b	40.1 mm (1.58 in.)
   *c	215.3 mm (8.48 in.)	-	-

   1. Temporarily install the front upper No. 1 suspension arm assembly LH to the front upper No. 1 arm bracket LH with the bolt and nut.

      HINT:

      When installing the front upper No. 1 suspension arm assembly LH, temporarily tighten the bolts at the position shown in the illustration.

   2. Fully tighten the bolt.

      Torque: 45 N.m (459 kgf/cm, 33 ft.lbf)

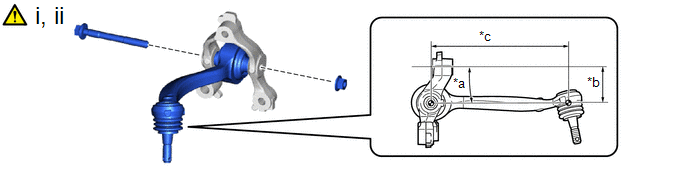

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	7.34°	*b	30.8 mm (1.21 in.)
   *c	210.7 mm (8.30 in.)	-	-

   1. Temporarily install the front upper No. 2 suspension arm assembly LH to the front upper No. 2 arm bracket LH with the bolt and nut.

      HINT:

      When installing the front upper No. 2 suspension arm assembly LH, temporarily tighten the bolts at the position shown in the illustration.

   2. Fully tighten the bolt.

      Torque: 45 N.m (459 kgf/cm, 33 ft.lbf)

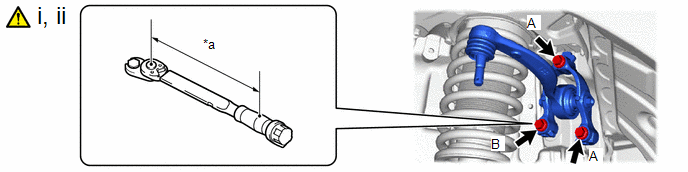

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Torque Wrench Fulcrum Length

   -

   -

   1. Install the front upper No. 1 arm bracket LH with the 2 bolts (A).

      Torque: 40 N.m (408 kgf/cm, 30 ft.lbf)

   2. Using a 14 mm union nut wrench. install the bolt (B).

      Specified tightening torque

      Torque: 40 N.m (408 kgf/cm, 30 ft.lbf)

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [11/2020 - ]

      • When using a union nut wrench (fulcrum length of 25 mm (0.984 in.)) + torque wrench (fulcrum length of 180 mm (7.087 in.)): 35.1 N.m (358 kgf/cm, 26 ft.lbf)

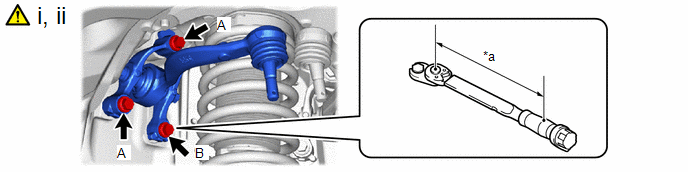

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Torque Wrench Fulcrum Length

   -

   -

   1. Install the front upper No. 2 arm bracket LH with the 2 bolts (A).

      Torque: 40 N.m (408 kgf/cm, 30 ft.lbf)

   2. Using a 14 mm union nut wrench. install the bolt (B).

      Specified tightening torque

      Torque: 40 N.m (408 kgf/cm, 30 ft.lbf)

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [11/2020 - ]

      • When using a union nut wrench (fulcrum length of 25 mm (0.984 in.)) + torque wrench (fulcrum length of 180 mm (7.087 in.)): 35.1 N.m (358 kgf/cm, 26 ft.lbf)

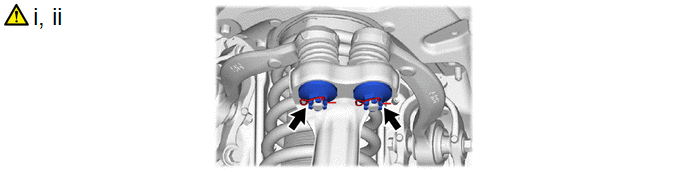

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Install the steering knuckle assembly LH to the front upper No. 1 suspension arm assembly LH and front upper No. 2 suspension arm assembly LH with the 2 nuts.

      Torque: 60 N.m (612 kgf/cm, 44 ft.lbf)

   2. Install 2 new clips.
      NOTE:

      Further tighten the nut up to 60° if the holes for the clip are not aligned.

Refer to INSTALLATION [11/2020 - ]

Refer to ADJUSTMENT [11/2020 - ]

Refer to WORK PROCEDURE [11/2020 - 11/2021] , or refer to WORK PROCEDURE [11/2021 - 12/2022] , or refer to WORK PROCEDURE [12/2022 - 12/2023] , or refer to WORK PROCEDURE [12/2023 - ]
