Removal [11/2021 - 12/2022]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - 12/2022]
  2. DISABLE BRAKE CONTROL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 2
  3. REMOVE FRONT WHEEL

    Refer to REMOVAL [11/2020 - 12/2023]

  4. DRAIN BRAKE FLUID
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    If brake fluid leaks onto any painted surface, immediately wash it off.
  5. REMOVE FRONT DISC BRAKE FITTING KIT

    Refer to PROCEDURE - Step 5

  6. REMOVE FRONT DISC BRAKE PAD KIT
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  7. REMOVE FRONT ANTI SQUEAL SHIM KIT

    Refer to PROCEDURE - Step 7

  8. REMOVE FRONT FLEXIBLE HOSE

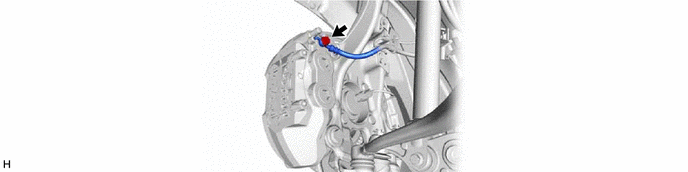

    1. GTY976578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE DISC BRAKE CYLINDER ASSEMBLY LH

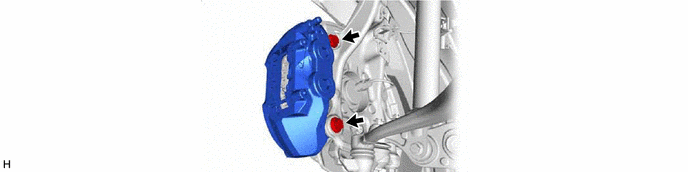

    1. GTY976599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT DISC LH
    1. Put matchmarks on the front disc LH and the front axle hub sub-assembly LH.
      GTY785972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark

      HINT:

      Not required when replacing the front disc LH.

    2. Remove the front disc LH.
