Removal [11/2021 - 12/2022]: Procedure

PRECAUTION

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

DISABLE BRAKE CONTROL

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRAIN BRAKE FLUID

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

If brake fluid leaks onto any painted surface, immediately wash it off.

REMOVE FRONT DISC BRAKE FITTING KIT

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

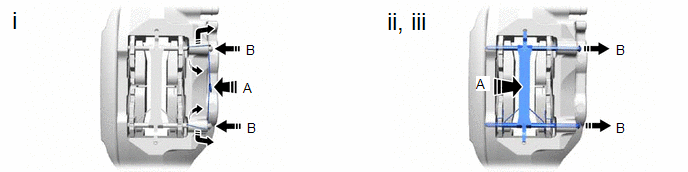

While pressing the area (A), push the hole pin (B) toward the disk brake cylinder assembly LH, and remove the pin hold clip.
While pressing the area (A), remove the 2 hole pins (B) and No. 1 anti-rattle spring.
Remove the anti-squeal spring.

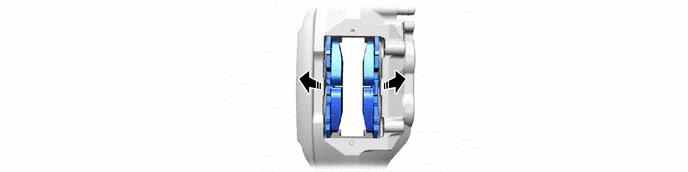

REMOVE FRONT DISC BRAKE PAD KIT

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WARNING:

Be careful not to get pinched by the disc brake cylinder assembly or other parts when removing the front disc brake pads.

NOTE:

Be sure to inspect the front disc when replacing the front disc brake pads with new ones.

REMOVE FRONT ANTI SQUEAL SHIM KIT

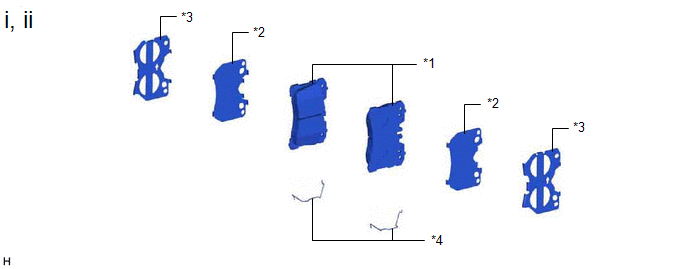

*1	Front Disc Brake Pad	*2	No. 1 Anti-Squeal Shim
*3	No. 2 Anti-Squeal Shim	*4	Inner Anti-Rattle Spring

Remove the No. 1 and No. 2 anti-squeal shims from each of the front disc brake pads.
Remove the inner anti-rattle springs from each of the front disc brake pads.
