Disassembly [11/2020 - 11/2021]: Procedure

  1. REMOVE REAR LIDAR ADVANCED DRIVE SENSOR ASSEMBLY (w/ Advanced Drive)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  2. REMOVE REAR LIDAR CLEANER COVER (w/ Advanced Drive)
  3. REMOVE REAR LIDAR CLEANER NOZZLE (w/ Advanced Drive)
  4. REMOVE REAR CENTER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 2

  5. REMOVE REAR CORNER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 3

  6. REMOVE REAR SIDE ULTRASONIC SENSOR (w/ Advanced Park)

    Refer to PROCEDURE - Step 4

  7. REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  8. REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  9. REMOVE REAR SIDE ULTRASONIC SENSOR RETAINER (w/ Advanced Park)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7
  10. REMOVE REAR SIDE MARKER LIGHT ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 2
  11. REMOVE REAR SIDE MARKER LIGHT ASSEMBLY RH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Use the same procedure described for the LH side.

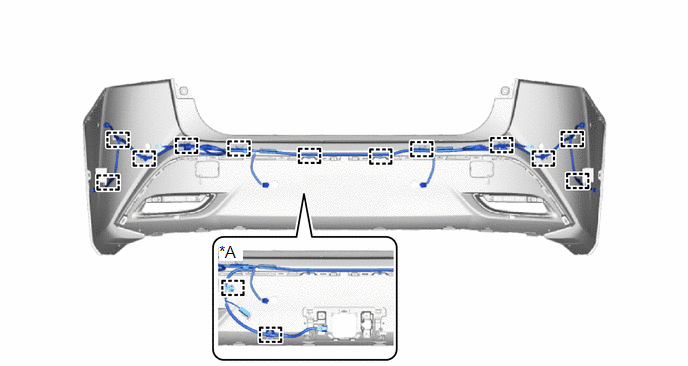

  12. REMOVE NO. 3 LUGGAGE ROOM WIRE
    1. GTY1016902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Advanced Drive - -

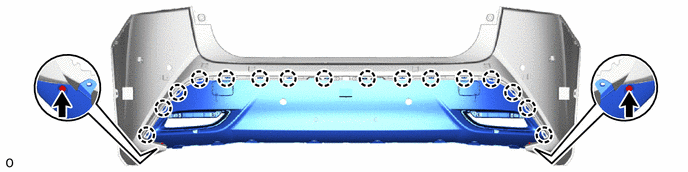

  13. REMOVE REAR BUMPER CENTER EXTENSION SUB-ASSEMBLY
    1. GTY1162299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

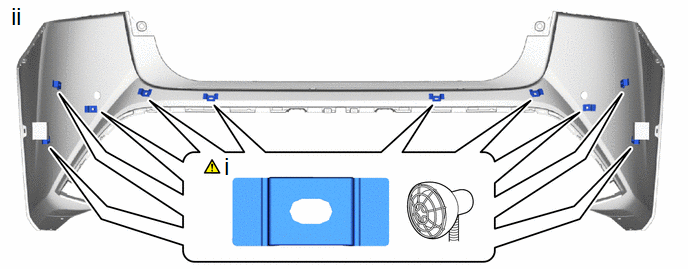

  14. REMOVE REAR ULTRASONIC SENSOR CLIP
    1. GTY1016646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the rear ultrasonic sensor clip using a heat light.

        Standard Value

        Part Temperature
        Rear Ultrasonic Sensor Clip 20 to 30°C (68 to 86°F)
        WARNING:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the rear ultrasonic sensor clip excessively.

      2. Remove 10 rear ultrasonic sensor clips.

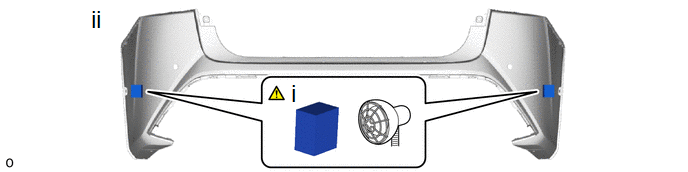

  15. REMOVE REAR BUMPER PAD
    1. GTY1016256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the rear bumper pad using a heat light.

        Standard Value

        Part Temperature
        Rear Bumper pad 20 to 30°C (68 to 86°F)
        WARNING:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the rear bumper pad excessively.

      2. Remove the 2 rear bumper pads.

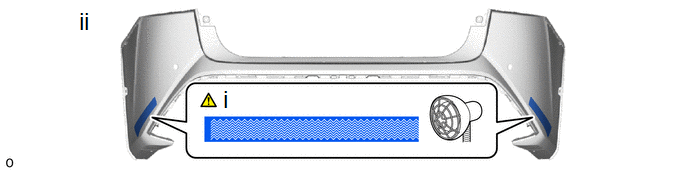

  16. REMOVE NO. 1 MOULDING TAPE
    1. GTY1015015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the No. 1 moulding tape using a heat light.

        Standard Value

        Part Temperature
        No. 1 Moulding Tape 20 to 30°C (68 to 86°F)
        WARNING:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the No. 1 moulding tape excessively.

      2. Remove the 2 No. 1 moulding tapes.

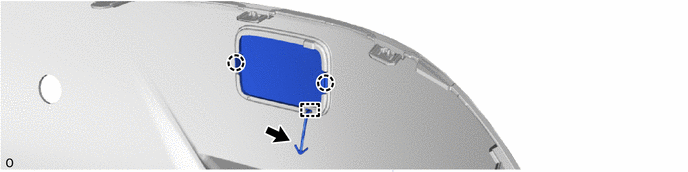

  17. REMOVE REAR BUMPER PLATE LH
    1. GTY1016160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Anti-drop hook - -
  18. REMOVE REAR BUMPER PLATE RH
    1. Use the same procedure described for the LH side.

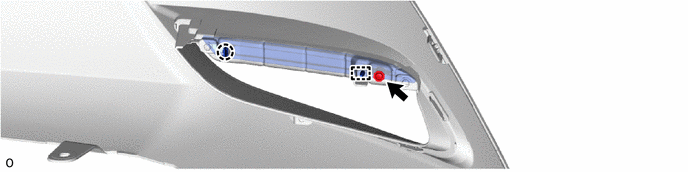

  19. REMOVE REFLEX REFLECTOR ASSEMBLY LH
    1. GTY1015347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE REFLEX REFLECTOR ASSEMBLY RH
    1. Use the same procedure described for the LH side.

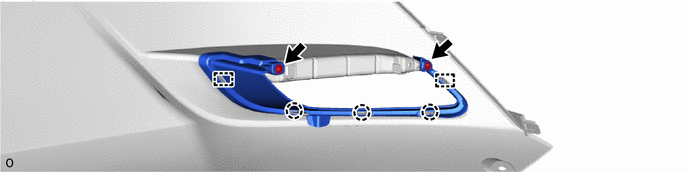

  21. REMOVE REAR BUMPER ARM EXTENSION LH
    1. GTY1015350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE REAR BUMPER ARM EXTENSION RH
    1. Use the same procedure described for the LH side.

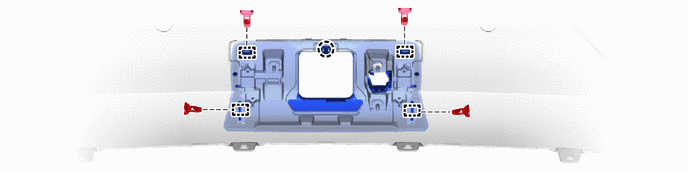

  23. REMOVE REAR BUMPER NO. 1 PLATE (w/ Advanced Drive)
    1. GTY1015333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

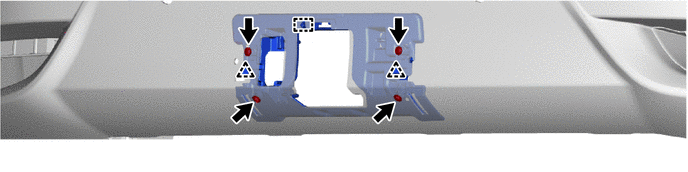

  24. REMOVE REAR BUMPER CENTER MOULDING RETAINER (w/ Advanced Drive)
    1. GTY1015330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

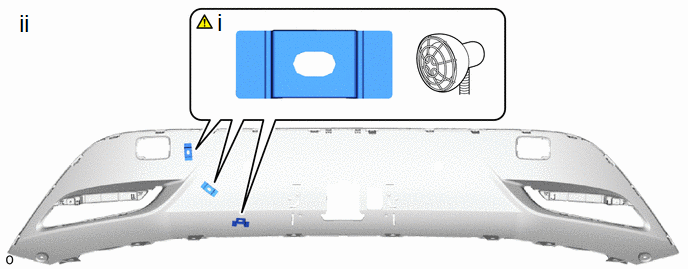

  25. REMOVE REAR ULTRASONIC SENSOR CLIP (w/ Advanced Drive)
    1. GTY1016237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Heat the adhesive of the rear ultrasonic sensor clip using a heat light.

        Standard Value

        Part Temperature
        Rear Ultrasonic Sensor Clip 20 to 30°C (68 to 86°F)
        WARNING:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the rear ultrasonic sensor clip excessively.

      2. Remove the 3 rear ultrasonic sensor clips.

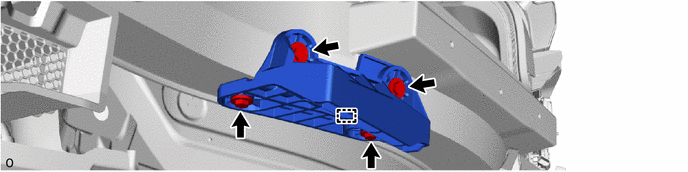

  26. REMOVE REAR BUMPER REINFORCEMENT BAR LH
    1. GTY1015337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE REAR BUMPER REINFORCEMENT BAR RH
    1. Use the same procedure described for the LH side.

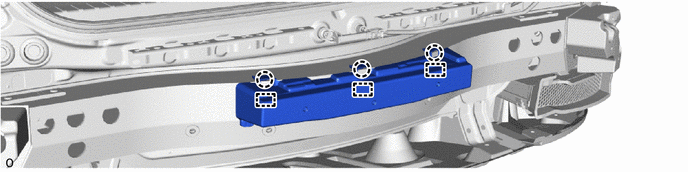

  28. REMOVE REAR BUMPER ENERGY ABSORBER
    1. GTY1015341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

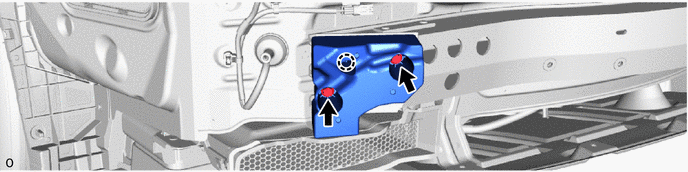

  29. REMOVE REAR BUMPER ARM REINFORCEMENT LH
    1. GTY1015376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE REAR BUMPER ARM REINFORCEMENT RH
    1. Use the same procedure described for the LH side.

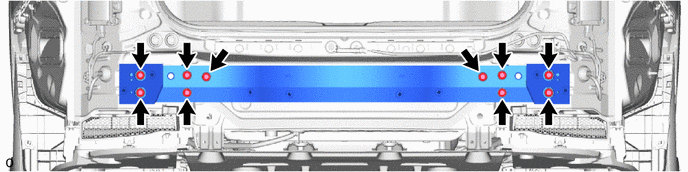

  31. REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY
    1. GTY1015379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

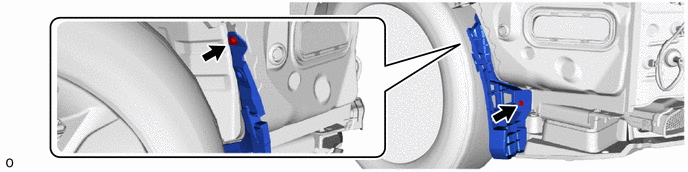

  32. REMOVE REAR BUMPER SIDE SEAL LH
    1. GTY1015381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE REAR BUMPER SIDE SEAL RH
    1. Use the same procedure described for the LH side.

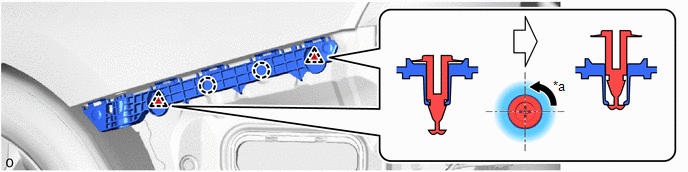

  34. REMOVE REAR BUMPER SIDE RETAINER LH
    1. GTY1015059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 90° - -
      Rotation Direction - -
  35. REMOVE REAR BUMPER SIDE RETAINER RH
    1. Use the same procedure described for the LH side.

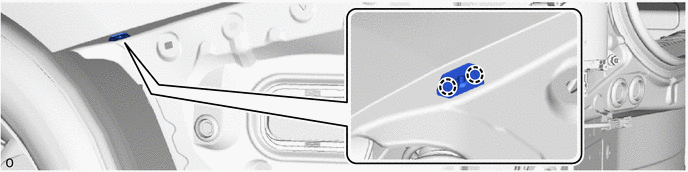

  36. REMOVE REAR BUMPER SEAL BRACKET LH
    1. GTY1015362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE REAR BUMPER SEAL BRACKET RH
    1. Use the same procedure described for the LH side.

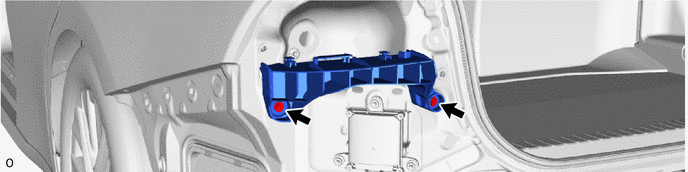

  38. REMOVE REAR BUMPER UPPER RETAINER LH
    1. GTY1015366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE REAR BUMPER UPPER RETAINER RH
    1. Use the same procedure described for the LH side.
