Removal [11/2020 - 11/2021]: Procedure

Refer to REMOVAL [11/2020 - 11/2021]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Disconnect the connector.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Heat the adhesive of the rear side marker light assembly LH and rear bumper assembly using a heat light.

      Standard Value

      Part	Temperature
      rear side marker light assembly LH	20 to 30°C (68 to 86°F)
      rear bumper assembly	20 to 30°C (68 to 86°F)

      WARNING:

      • Do not touch the heat light and heated parts.
      • Touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.

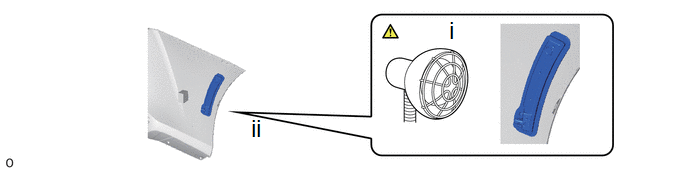

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Heated Part
      *b	Heat Light

      NOTE:

      Do not heat the rear side marker light assembly LH and rear bumper assembly excessively.

   2. Using a gasket scraper, remove the rear side marker light assembly LH.
