Reassembly [11/2021 - 12/2023]: Procedure
- INSTALL FRONT BUMPER SIDE SUPPORT LH
- INSTALL FRONT BUMPER SIDE SUPPORT RH
- INSTALL FRONT BUMPER NO. 2 REINFORCEMENT SUB-ASSEMBLY
Torque: 25 N.m (255 kgf/cm, 18 ft.lbf)
- INSTALL LOWER RADIATOR AIR GUIDE PLATE
- INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
Torque: 37.6 N.m (383 kgf/cm, 28 ft.lbf)
- INSTALL UPPER RADIATOR SUPPORT BRACE LH
Bolt
Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)
Nut
Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)
- INSTALL UPPER RADIATOR SUPPORT BRACE RH
Bolt
Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)
Nut
Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

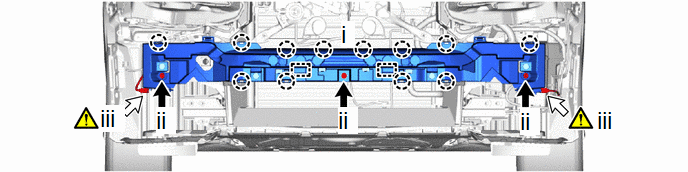

- INSTALL FRONT BUMPER ENERGY ABSORBER SUB-ASSEMBLY
*a Goes off - - - Check that the ignition switch is off.
- Check that the cable is disconnected from the negative (-) auxiliary battery terminal.WARNING:
- Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- If the airbag deploys for any reason, it may cause a serious accident.
Bolt Airbag Connector - Attach the guide and claw and install the front bumper energy absorber sub-assembly.
- Install the 3 bolts.
Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)
- Connect the 2 airbag connectors.NOTE:
- When connecting any airbag connector, take care not to damage the airbag wire harness.
- Make sure the lock button is securely locked.
HINT:
Refer to How to Connect or Disconnect Airbag Connector: Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [11/2020 - ]
- INSTALL LOWER RADIATOR GRILLE MOULDING
- INSTALL LOWER RADIATOR GRILLE SUB-ASSEMBLY
- INSTALL RADIATOR GRILLE SUB-ASSEMBLY
- INSTALL RADIATOR GRILLE EMBLEM
- INSTALL LOWER RADIATOR GRILLE RH
- INSTALL FRONT BUMPER HOLE COVER
- INSTALL RADIATOR GRILLE BRACKET
- INSTALL HOOD TO FRONT END PANEL SEAL
- INSTALL FRONT ULTRASONIC SENSOR CLIP (w/ Parking Support Brake System)

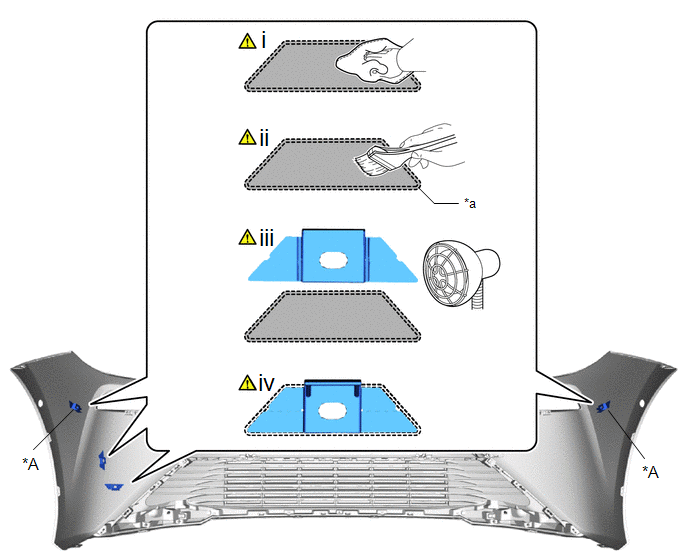

*A w/ Advanced Park - - *a Mark-off Line - - Installation area - - - Clean the front bumper cover surface:
1. When reusing the front bumper cover, remove remaining double-sided tape from the front bumper cover.
2. Using a heat light, heat the front bumper cover surface.
Standard Value
Part Temperature Front Bumper Cover 20 to 30°C (68 to 86°F) Front Ultrasonic Sensor Clip 20 to 30°C (68 to 86°F) WARNING:- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat the front bumper cover excessively.
3. Remove any remaining double-sided tape from the front bumper cover and wipe off any tape adhesive residue with cleaner.
4. Clean the installation area surface.
NOTE:- Installing the front ultrasonic sensor clip with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
- Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
- Also, clean a new front bumper cover surface.
- Primer application:
1. Apply primer to the front bumper cover on the installation area of the front ultrasonic sensor clip using a brush or felt.
NOTE:- Replace the brush or felt if it is dirty or has become hardened.
- Keep any painted surface free from primer.
- If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.
- Do not touch surfaces to which primer has been applied until the front ultrasonic sensor clip has been attached.
2. Let the primer dry sufficiently.
NOTE:Do not touch applied surfaces until the primer is dry.
Recommended drying time
10 minutes or more (at 23°C (73°F))
- Using a heat light, heat the front bumper cover and a new front ultrasonic sensor clip.NOTE:
Do not heat the front ultrasonic sensor clip and front bumper cover excessively.
- Install each front ultrasonic sensor clip in the position shown in the illustration.NOTE:
The application strength of the front ultrasonic sensor clip will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.
HINT:
Apply pressure so that it does not lift up from the front bumper cover.
- Clean the front bumper cover surface:
- INSTALL FRONT NO. 4 COMPARTMENT WIRE
- INSTALL FRONT BUMPER EXTENSION LH
- INSTALL FRONT BUMPER EXTENSION RH
- INSTALL RADIATOR GRILLE FINISH PLATE LH (w/ Advanced Drive)
- INSTALL RADIATOR GRILLE FINISH PLATE RH (w/ Advanced Drive)
- INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET
- INSTALL FRONT LIDAR CLEANER NOZZLE (w/ Advanced Drive)
- INSTALL FRONT LIDAR CLEANER COVER (w/ Advanced Drive)
- INSTALL FRONT LIDAR ADVANCED DRIVE SENSOR ASSEMBLY (w/ Advanced Drive)
Refer to PROCEDURE - Step 1 - INSTALL FRONT NO. 2 LIDAR CLEANER HOSE SUB-ASSEMBLY (w/ Advanced Drive)
- INSTALL FRONT TURN SIGNAL LIGHT ASSEMBLY LH
- INSTALL FRONT TURN SIGNAL LIGHT ASSEMBLY RH
- INSTALL FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)
Refer to PROCEDURE - Step 1 - INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY
- for Stereo Camera Type:
Refer to PROCEDURE - Step 1
- for Mono Camera Type:
Refer to PROCEDURE - Step 1
- for Stereo Camera Type:
- INSTALL FRONT SIDE ULTRASONIC SENSOR RETAINER (w/ Advanced Park)
Refer to PROCEDURE - Step 2 - INSTALL FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)
Refer to PROCEDURE - Step 3 - INSTALL FRONT SIDE ULTRASONIC SENSOR (w/ Advanced Park)
- INSTALL FRONT CORNER ULTRASONIC SENSOR (w/ Parking Support Brake System)
- INSTALL FRONT CENTER ULTRASONIC SENSOR (w/ Parking Support Brake System)
