Removal [12/2022 - 12/2023]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2022 - 12/2023]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to REMOVAL [12/2022 - 12/2023]

  3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3
  4. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4
  5. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  7. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH

    Refer to PROCEDURE - Step 11

  8. REMOVE FRONT DOOR GLASS INNER WEATHERSTRIP
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 12
  9. REMOVE FRONT DOOR BELT REAR SEAL

    Refer to PROCEDURE - Step 13

  10. REMOVE FRONT DOOR BELT FRONT SEAL

    Refer to PROCEDURE - Step 14

  11. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  12. REMOVE MULTIPLEX NETWORK FRONT DOOR ECU

    Refer to PROCEDURE - Step 16

  13. REMOVE FRONT DOOR SERVICE HOLE COVER
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 20
  14. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 22
  15. REMOVE FRONT DOOR GLASS RUN

    Refer to PROCEDURE - Step 23

  16. REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  17. REMOVE FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13

  18. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 27
  19. REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 28
  20. SEPARATE FRONT DOOR LOCK OPEN ROD

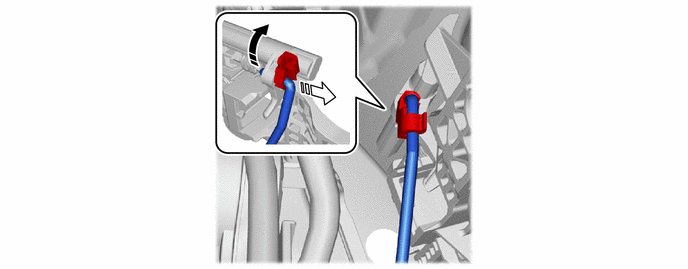

    1. GTY1165009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
  21. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY

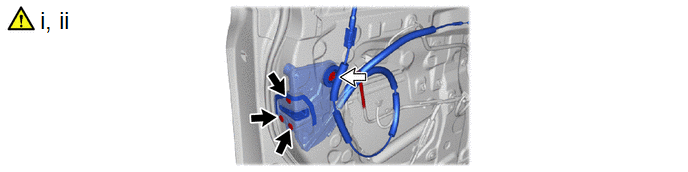

    1. GTY1018195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      "TORX" screw Connector
      1. Disconnect the connector.
      2. Using a T30 "TORX" socket wrench, remove the 3 TORX screws and remove the front door lock with motor assembly.
  22. REMOVE FRONT DOOR LOCK OPEN ROD

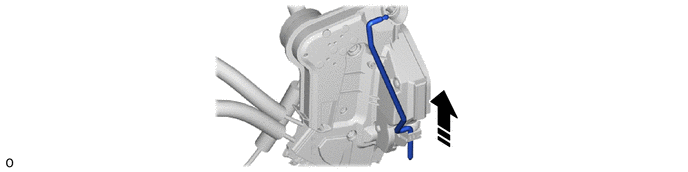

    1. GTY1018200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  23. REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY

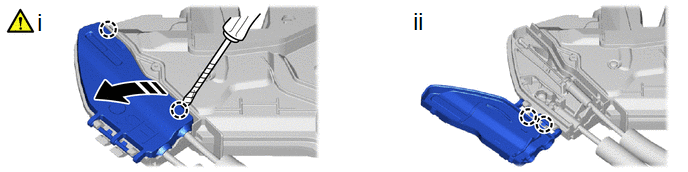

    1. GTY1018202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the claw to open the front door lock cover sub-assembly.
      2. Disengage the claw to remove the front door lock cover sub-assembly.
  24. REMOVE FRONT DOOR LOCK OPEN LEVER REMOTE CONTROL CABLE

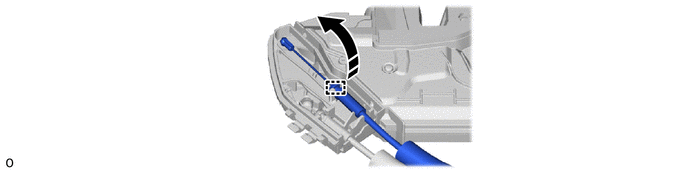

    1. GTY1018262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  25. REMOVE FRONT DOOR INSIDE LOCK/UNLOCK KNOB LOCKING CABLE

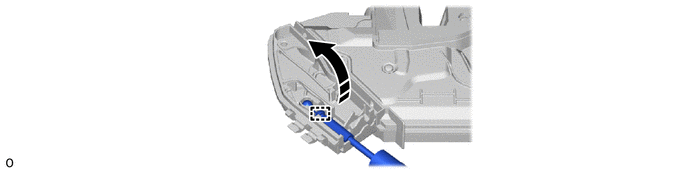

    1. GTY1018303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  26. REMOVE DOOR LOCK WIRING HARNESS SEAL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When reusing a removed front door lock with motor assembly, replace the door lock wiring harness seal with a new one.
    1. When reusing the front door lock with motor assembly:

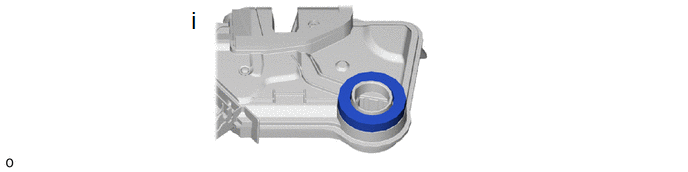

      GTY1018058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the door lock wiring harness seal from the front door lock with motor assembly.
