Removal [11/2020 - ]: Procedure

  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 3 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 3 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 3 [12/2023 - ]
  2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 4 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 4 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 4 [12/2023 - ]
  3. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 5 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 5 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 5 [12/2023 - ]
  4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 6 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 6 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 6 [12/2023 - ]
  5. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Do not touch the cone section of the front No. 1 speaker assembly.

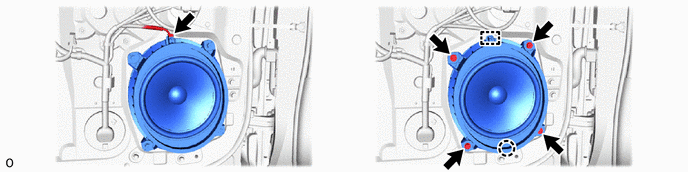

    1. GTY990752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
