Removal [11/2020 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [11/2020 - ]

  2. REMOVE TELEVISION AND INNER REAR VIEW MIRROR CAMERA ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3 [11/2020 - 12/2022] , or refer to PROCEDURE - Step 3 [12/2022 - ]
  3. REMOVE REAR WASHER (FROM JOINT TO NOZZLE) HOSE
    1. GTY1017376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE TELEVISION CAMERA SEAL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5 [11/2020 - 12/2022] , or refer to PROCEDURE - Step 5 [12/2022 - ]

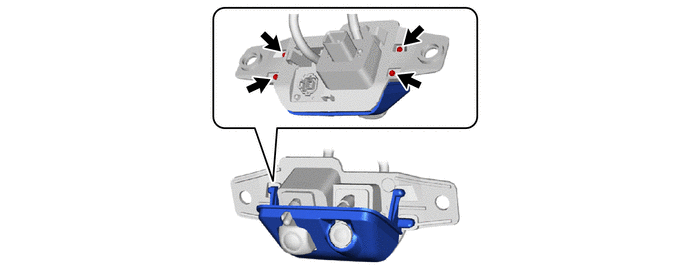

  5. REMOVE TELEVISION CAMERA COVER
    1. GTY1016981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

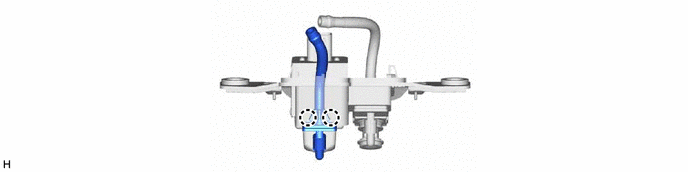

  6. REMOVE NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY
    1. GTY1017366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

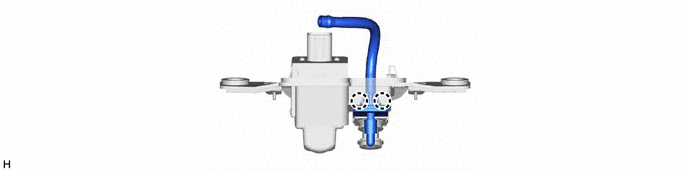

  7. REMOVE NO. 2 CAMERA CLEANER NOZZLE ASSEMBLY
    1. GTY1017371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
