Removal [11/2020 - 12/2022]: Procedure

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 10 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 10 [11/2021 - 12/2022]

  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL END

    Refer to PROCEDURE - Step 13 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 13 [11/2021 - 12/2022]

  3. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

    Refer to PROCEDURE - Step 8 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 8 [11/2021 - 12/2022]

  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 11 [11/2021 - 12/2022]

  5. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    • Pull back the front door opening trim weatherstrip RH so that the front pillar garnish RH can be removed.
    • Use the same procedure described for the LH side.

      Refer to PROCEDURE - Step 2
  6. REMOVE FRONT PILLAR GARNISH ASSEMBLY RH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Use the same procedure described for the LH side.
    Refer to PROCEDURE - Step 17 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 17 [11/2021 - 12/2022]
  7. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL

    Refer to PROCEDURE - Step 20 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 20 [11/2021 - 12/2022]

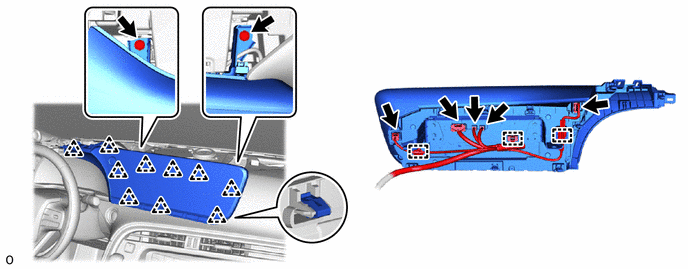

  8. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET
    1. GTY990369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE MULTI-DISPLAY CONTROLLER BRACKET A
    1. GTY990744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

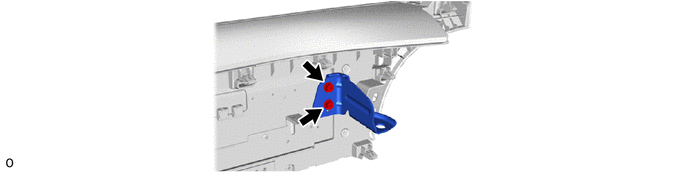

  10. REMOVE MULTI-DISPLAY CONTROLLER BRACKET B
    1. GTY990747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2
