Removal [11/2021 - 12/2022]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    Refer to PRECAUTION [11/2020 - 12/2022]

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - 12/2022]
  2. REMOVE NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY (w/ Navigation System)

    Refer to REMOVAL [11/2021 - 12/2022]

  3. REMOVE NAVIGATION ECU ASSEMBLY WITH BRACKET (w/ Navigation System)

    Refer to PROCEDURE - Step 2

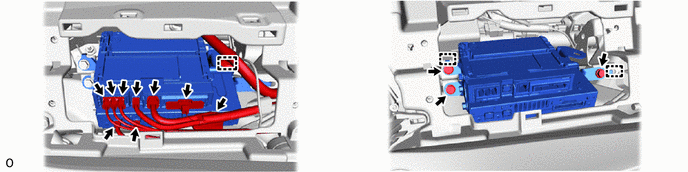

  4. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET (w/ Navigation System)
    1. GTY990374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 INTEGRATION CONTROL BRACKET (w/ Navigation System)
    1. GTY985657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 2 INTEGRATION CONTROL BRACKET (w/ Navigation System)
    1. GTY985467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (w/o Navigation System)

    Refer to REMOVAL [11/2021 - 12/2022]

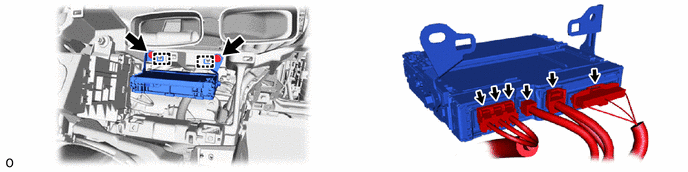

  8. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET (w/o Navigation System)
    1. GTY991515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 TELEPHONE BRACKET (w/o Navigation System)
    1. GTY991514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 2 TELEPHONE BRACKET (w/o Navigation System)
    1. GTY991510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
