Removal [11/2020 - 12/2022]: Procedure

  1. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET

    Refer to REMOVAL [11/2020 - 12/2022]

  2. REMOVE NAVIGATION ECU ASSEMBLY WITH BRACKET

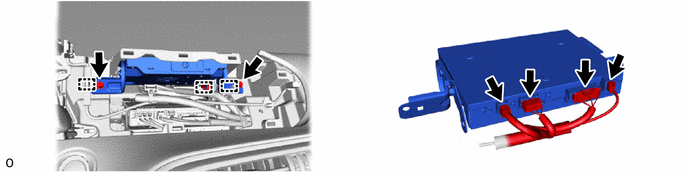

    1. GTY990905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 NAVIGATION ECU BRACKET
    1. GTY991248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 NAVIGATION ECU BRACKET
    1. GTY991249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
