Removal [11/2020 - 12/2022]: Procedure

  1. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (w/ Navigation System)

    Refer to REMOVAL [11/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 12/2022]

  2. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET (w/ Navigation System)

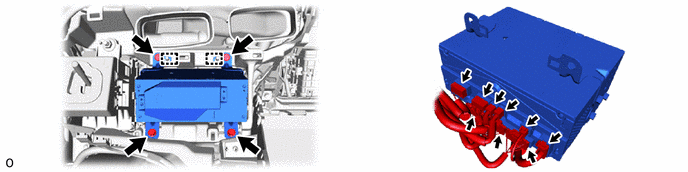

    1. GTY991518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 RADIO RECEIVER BRACKET (w/ Navigation System)
    1. GTY985692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 RADIO RECEIVER BRACKET (w/ Navigation System)
    1. GTY985689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/o Navigation System)

    Refer to PROCEDURE - Step 10 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 10 [11/2021 - 12/2022]

  6. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT (w/o Navigation System)

    Refer to PROCEDURE - Step 8 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 8 [11/2021 - 12/2022]

  7. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/o Navigation System)

    Refer to PROCEDURE - Step 11 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 11 [11/2021 - 12/2022]

  8. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/o Navigation System)

    Refer to PROCEDURE - Step 22 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 22 [11/2021 - 12/2022]

  9. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (w/o Navigation System)

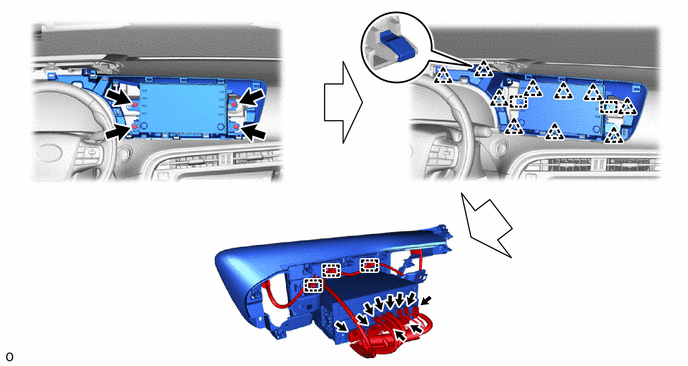

    1. GTY991503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 1 RADIO RECEIVER BRACKET (w/o Navigation System)
    1. GTY990286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 RADIO RECEIVER BRACKET (w/o Navigation System)
    1. GTY990289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY (w/o Navigation System)

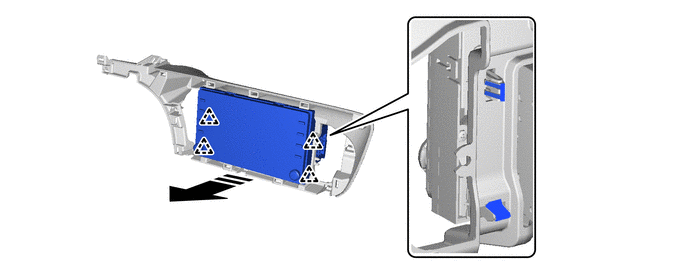

    1. GTY992069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
