Removal [11/2021 - 12/2022]: Procedure

  1. CHECK SOFTWARE PART NUMBER (w/ Advanced Drive)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    If the advanced drive extension ECU assembly is replaced, check the software part number.

    Refer to SOFTWARE UPDATE [11/2021 - ]
  2. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM (for Power Tilt and Power Telescopic Steering Column)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Perform the customization settings before turned off the ignition switch. Otherwise, removal of the combination meter assembly becomes difficult.

    Refer to PROCEDURE - Step 2
  3. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET (w/ Navigation System)

    Refer to REMOVAL [11/2020 - 12/2022]

  4. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (w/o Navigation System)

    Refer to REMOVAL [11/2020 - 12/2022]

  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1
  6. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 4

  7. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 6

  8. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  9. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 9
  10. REMOVE LOWER INSTRUMENT COVER SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    When removing the lower instrument cover sub-assembly, keep the No. 2 instrument panel safety pad sub-assembly floating.

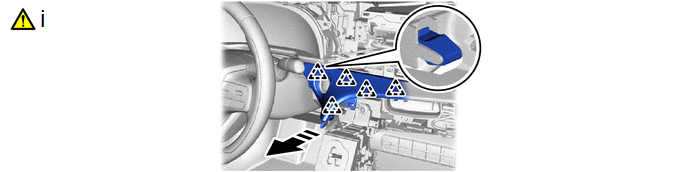

    1. GTY992602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Remove the clip of the No. 2 instrument panel safety pad sub-assembly in the range as shown in the illustration.

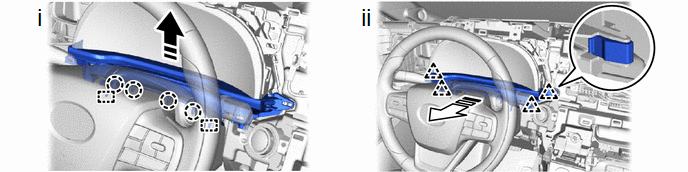

    2. GTY992279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      1. Detach the claw and guide.
      2. Detach the clip and remove the lower instrument cover sub-assembly.
  11. REMOVE COMBINATION METER ASSEMBLY

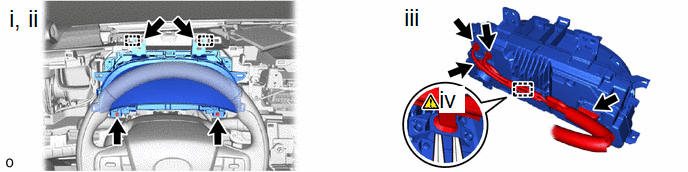

    1. GTY993062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 4 screws.
      2. Detach the guide and pull out the combination meter assembly.
      3. Disconnect each connector.
      4. Using needle-nose pliers, detach the clamp and remove the combination meter assembly.
