Removal [11/2020 - 11/2021]: Procedure

  1. REMOVE STEERING COLUMN ASSEMBLY
    1. for Manual Tilt and Manual Telescopic Steering Column:

      Refer to REMOVAL [11/2020 - 11/2021]

    2. for Power Tilt and Power Telescopic Steering Column:

      Refer to REMOVAL [11/2020 - 11/2021]

  2. DISCONNECT FRONT COMPARTMENT MAIN WIRE

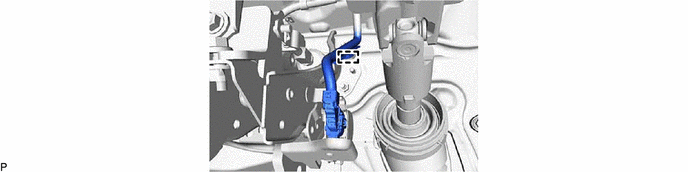

    1. GTY980829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. DISCONNECT BRAKE PEDAL SUPPORT ASSEMBLY

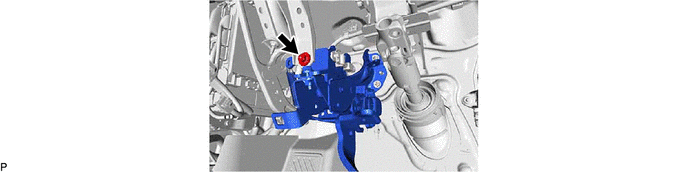

    1. GTY980825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT ASSEMBLY

    Refer to REMOVAL [11/2020 - 11/2021]

  5. REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4
  6. REMOVE BRAKE PEDAL RETURN SPRING

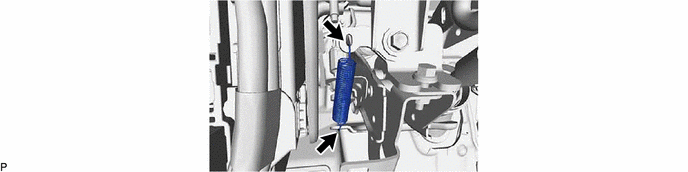

    1. GTY980822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE STOP LIGHT SWITCH ASSEMBLY

    Refer to REMOVAL [11/2020 - 12/2023]

  8. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  9. REMOVE BRAKE PEDAL SUPPORT REINFORCEMENT

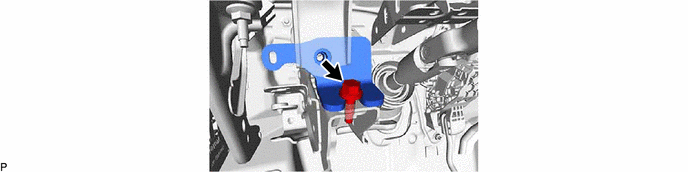

    1. GTY980818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE PUSH ROD PIN

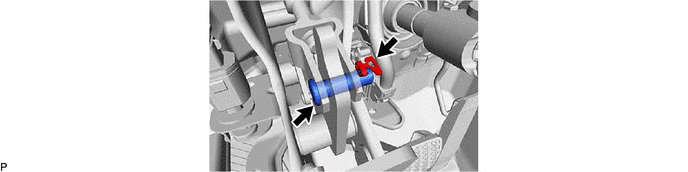

    1. GTY981036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

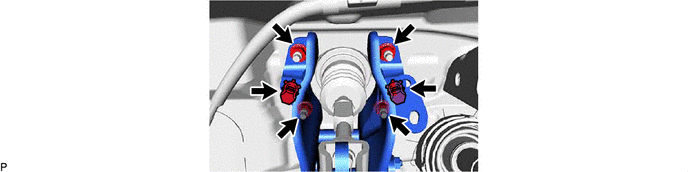

    1. GTY980813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE BRAKE PEDAL PAD

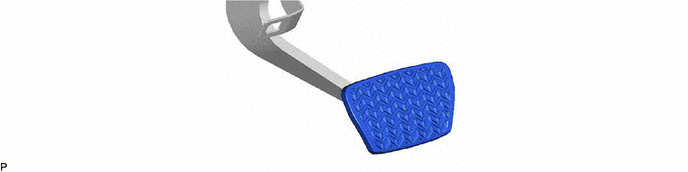

    1. GTY980334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
