Removal [11/2020 - 12/2023]: Procedure

  1. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIR BAG ASSEMBLY

    Refer to REMOVAL [11/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 12/2022] , or refer to REMOVAL [12/2022 - 12/2023]

  2. REMOVE AIR DUCT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 9 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 9 [12/2022 - 12/2023]

  3. REMOVE NO. 2 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 10 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 10 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 10 [12/2022 - 12/2023]

  4. REMOVE STOP LIGHT SWITCH ASSEMBLY

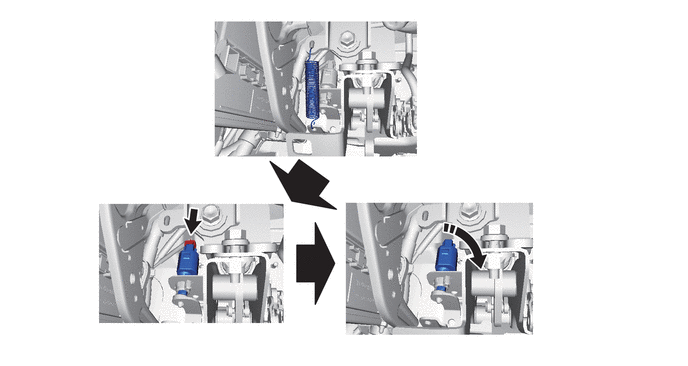

    1. GTY992159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  5. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 The stop light switch mounting adjuster must not be reused.

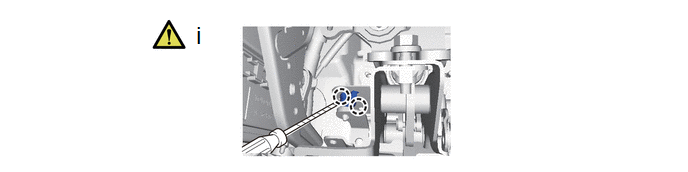

    1. GTY993017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver, detach the claw to remove the stop light switch mounting adjuster.
