Installation [11/2020 - 12/2023]: Procedure

Torque: 12.7 N.m (130 kgf/cm, 9 ft.lbf)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Lithium Soap Base Glycol Grease

   -

   -

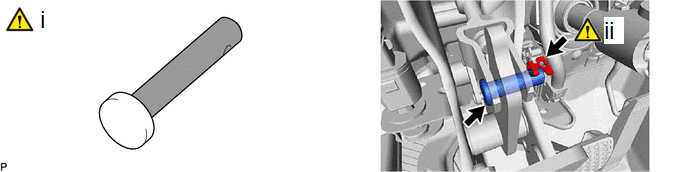

   1. Apply lithium soap base glycol grease to the push rod pin.
   2. Connect the master cylinder push rod clevis to the brake pedal support assembly with the push rod pin, and install a new clip as shown in the illustration.
      NOTE:

      Be sure to install the push rod pin in the correct direction.

Refer to PROCEDURE - Step 1

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Front of the Vehicle

   -

   -

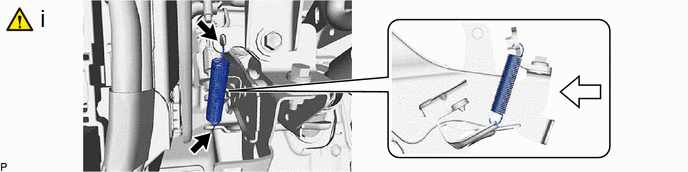

   1. Install the brake pedal return spring to the brake pedal support assembly.
      NOTE:

      Be sure to install the brake pedal return spring in the correct direction.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:  After performing brake pedal height checks and adjustments, install the instrument panel safety pad sub-assembly.

Refer to INSTALLATION [11/2020 - 12/2022] , or refer to INSTALLATION [12/2022 - 12/2023]

Torque: 15 N.m (153 kgf/cm, 11 ft.lbf)

Torque: 12.3 N.m (125 kgf/cm, 9 ft.lbf)

See step  1

1. for Manual Tilt and Manual Telescopic Steering Column:

   Refer to INSTALLATION [11/2020 - 12/2022] , or refer to INSTALLATION [12/2022 - 12/2023]

2. for Power Tilt and Power Telescopic Steering Column:

   Refer to INSTALLATION [11/2020 - 12/2022] , or refer to INSTALLATION [12/2022 - 12/2023]

Refer to INSTALLATION [11/2020 - 12/2022] , or refer to INSTALLATION [12/2022 - 12/2023]

Refer to ADJUSTMENT [11/2020 - 12/2023]
