Removal [11/2021 - 12/2022]: Procedure
- PRECAUTION WARNING:
Be sure to read precaution thoroughly before servicing.
Refer to PRECAUTION [11/2020 - 12/2022]
NOTE:After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.
- PERFORM ACCUMULATOR PRESSURE ZERO DOWN
Refer to PROCEDURE - Step 2 - DRAIN BRAKE FLUID NOTE:
If brake fluid leaks onto any painted surface, immediately wash it off.
- REMOVE BRAKE ACTUATOR WITH BRACKET
Refer to REMOVAL [11/2021 - 12/2022]
- REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to REMOVAL [11/2021 - 12/2022]
- REMOVE NO. 2 AIR DUCT SUB-ASSEMBLY
Refer to PROCEDURE - Step 9
- REMOVE NO. 2 HEATER TO REGISTER DUCT
Refer to PROCEDURE - Step 10
- REMOVE NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY
Refer to PROCEDURE - Step 67
- REMOVE BRAKE PEDAL RETURN SPRING
See step 6
- REMOVE STOP LIGHT SWITCH ASSEMBLY
Refer to REMOVAL [11/2020 - 12/2023]
- REMOVE PUSH ROD PIN
See step 10
- DISCONNECT FRONT COMPARTMENT MAIN WIRE

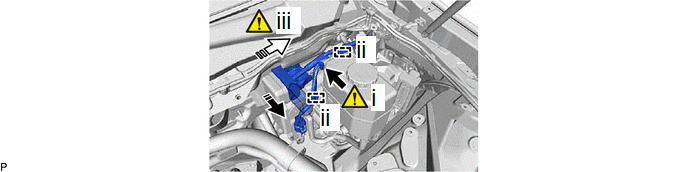

Release the lock lever Disconnect the connector - Disconnect the brake fluid level warning switch connector.NOTE:
Be careful not to allow any brake fluid to enter the connector.
- Disengage the 2 clamp to disconnect the front compartment main wire from the brake booster with master cylinder assembly.
- Release the lock lever and disconnect the connector from the brake booster with master cylinder assembly.NOTE:
Be careful not to allow any brake fluid to enter the connector.
- Disconnect the brake fluid level warning switch connector.
- REMOVE BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY

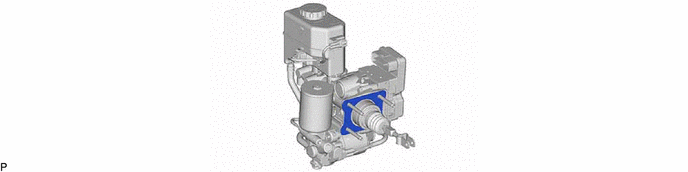

- Remove the 4 nuts and brake booster with master cylinder assembly.NOTE:
- Do not apply excessive force to the brake lines.
- Be careful not to allow any brake fluid to enter the connector.
- Do not carry the brake booster with master cylinder assembly by the parts shown in the illustration.
*a No. 1 Skid Control ECU *b No. 1 Reservoir Hose and No. 2 Reservoir Hose *c Master Cylinder Push Rod Clevis *d Boot *e Brake Master Cylinder Reservoir *f No. 1 Brake Actuator Tube *g No. 1 Wire Clamp Bracket *h Brake Booster with Accumulator Pump Assembly
- Remove the 4 nuts and brake booster with master cylinder assembly.

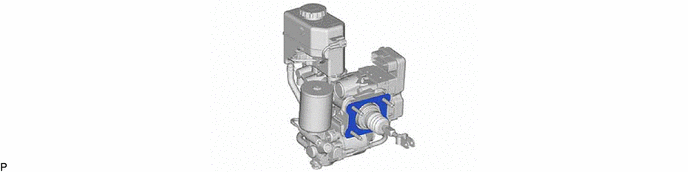

- REMOVE BRAKE MASTER CYLINDER GASKET
- REMOVE BOOSTER BRACKET STOPPER RING
- REMOVE BRAKE BOOSTER BRACKET
- REMOVE BRAKE MASTER CYLINDER GASKET

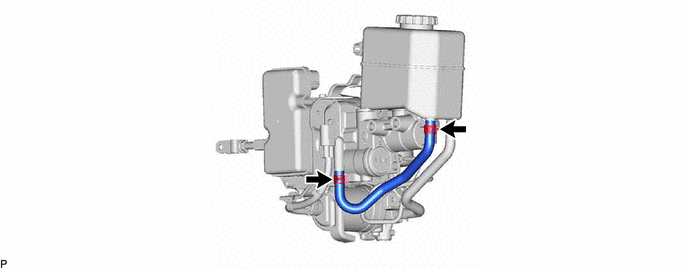

- REMOVE NO. 1 RESERVOIR HOSE
HINT:

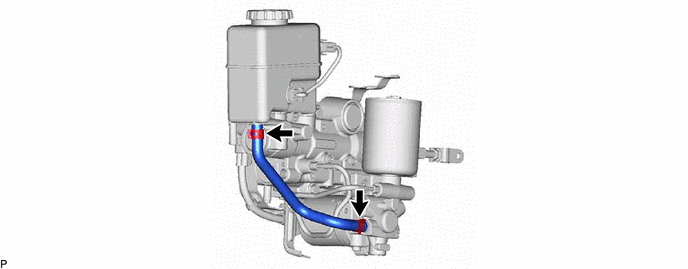

Perform this procedure only when replacement of the No. 1 reservoir hose is necessary. - REMOVE NO. 2 RESERVOIR HOSE
HINT:
Perform this procedure only when replacement of the No. 2 reservoir hose is necessary. - REMOVE NO. 1 WIRE CLAMP BRACKET
HINT:
Perform this procedure only when replacement of the No. 1 wire clamp bracket is necessary.
