Installation [11/2020 - ]: Procedure

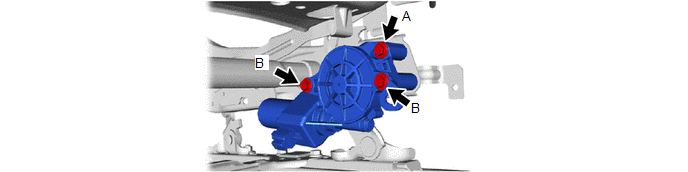

- INSTALL POWER SEAT TILT MOTOR ASSEMBLY LH NOTE:
- Bolt A is shorter than bolt B. Make sure to install them to the correct positions.
- Do not damage or dirty the gears of the power seat tilt motor assembly LH and front seat adjuster assembly LH.
- INSTALL POWER SEAT LIFTER MOTOR ASSEMBLY LH

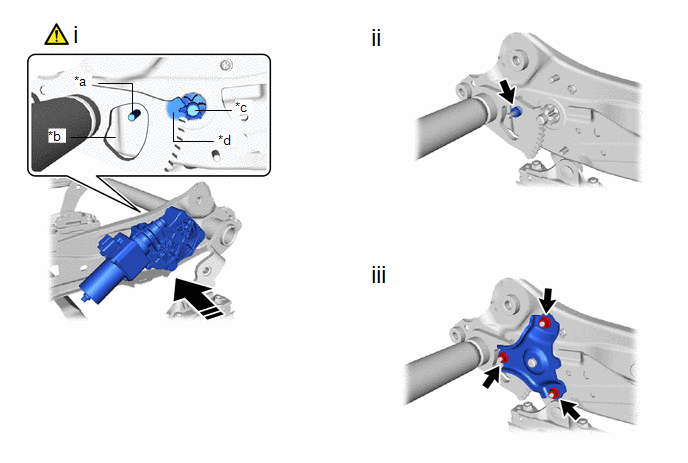

*a Stud Bolt of the Front Seat Vertical Housing Sub-assembly LH *b Hole of the Front Seat Adjuster Assembly LH *c Front Seat Vertical Housing Sub-assembly LH *d Front Seat Adjuster Assembly LH - Install the front seat vertical housing sub-assembly LH.NOTE:
- Make sure to insert the stud bolt of the front seat vertical housing sub-assembly LH into the hole of the front seat adjuster assembly LH as shown in the illustration.
- Make sure to position the front seat adjuster assembly LH so that when the front seat vertical housing sub-assembly LH is installed, their gears will be positioned as shown in the illustration.
- Install the vertical adjuster spacer.
- Install the front seat adjuster plate with the 3 nuts.
Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)
- Install the front seat vertical housing sub-assembly LH.
- INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER LH
- CONNECT FRONT SEAT WIRE LH
- INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD LH
- INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY LH
Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)
- INSTALL FRONT INNER SEAT CUSHION SHIELD LH
- INSTALL FRONT SEAT CUSHION SHIELD LH
- INSTALL FRONT SEAT FRONT CUSHION SHIELD LH
- INSTALL FRONT SEAT INNER BELT ASSEMBLY LH
Refer to PROCEDURE - Step 1 - INSTALL FRONT SEAT ASSEMBLY LH
Refer to INSTALLATION [11/2020 - 12/2022] , or refer to INSTALLATION [12/2022 - 12/2023] , or refer to INSTALLATION [12/2023 - ]
