Installation [11/2020 - ]: Procedure

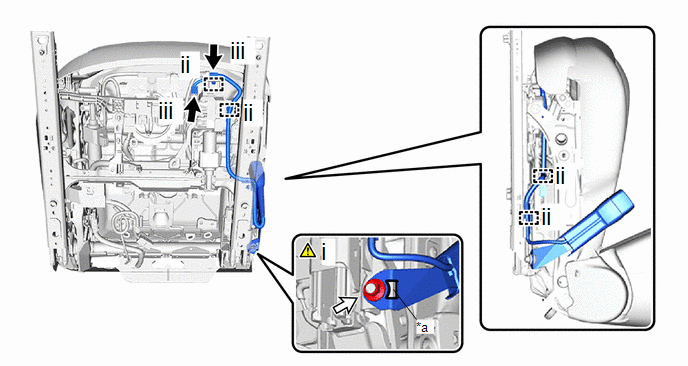

INSTALL FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protruding Part	-	-
	Connector		Nut

Install the front seat inner belt assembly LH with the nut.
Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

NOTE:
Do not allow the anchor part of the front seat inner belt assembly LH to overlap the protruding part.
Attach the claw and clamp.
Connect the 2 connectors.

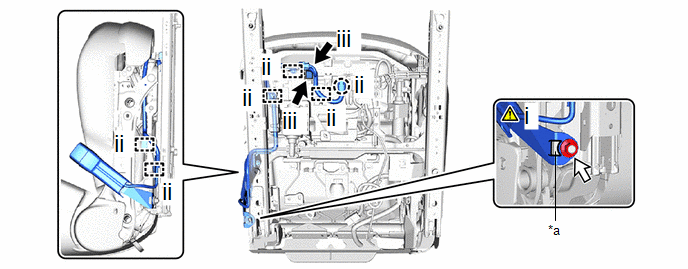

INSTALL FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)

for 8 Way Seat Type:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protruding Part	-	-
	Connector		Nut

Install the front seat inner belt assembly RH with the nut.
Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

NOTE:
Do not allow the anchor part of the front seat inner belt assembly RH to overlap the protruding part.
Attach the clamp.
Connect the 2 connectors.

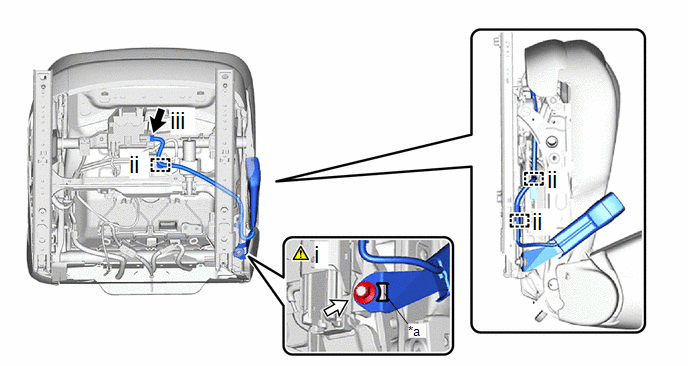

for 4 Way Seat Type:

*a	Protruding Part	-	-
	Connector		Nut

Install the front seat inner belt assembly RH with the nut.
Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

NOTE:
Do not allow the anchor part of the front seat inner belt assembly RH to overlap the protruding part.
Attach the clamp.
Connect the connector.

INSTALL FRONT SEAT ASSEMBLY LH
Refer to INSTALLATION [11/2020 - 12/2022] , or refer to INSTALLATION [12/2022 - 12/2023] , or refer to INSTALLATION [12/2023 - ]
