Disassembly [11/2020 - 11/2021]: Procedure

  1. REMOVE FRONT CENTER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 2

  2. REMOVE FRONT CORNER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 3

  3. REMOVE FRONT SIDE ULTRASONIC SENSOR (w/ Advanced Park)

    Refer to PROCEDURE - Step 4

  4. REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  5. REMOVE FRONT SIDE ULTRASONIC SENSOR RETAINER (w/ Advanced Park)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  6. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    1. for Stereo Camera Type:

      -

    2. for Mono Camera Type:

      Refer to PROCEDURE - Step 4

  7. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    Refer to PROCEDURE - Step 4

  8. REMOVE FRONT TURN SIGNAL LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  9. REMOVE FRONT TURN SIGNAL LIGHT ASSEMBLY RH
    1. Use the same procedure described for the LH side.

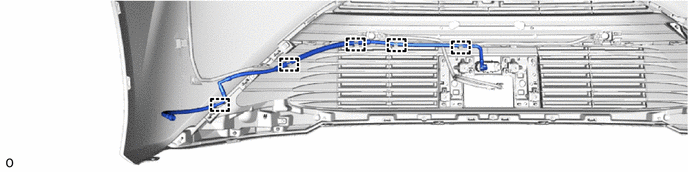

  10. REMOVE FRONT NO. 2 LIDAR CLEANER HOSE SUB-ASSEMBLY (w/ Advanced Drive)
    1. GTY1015266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT LIDAR ADVANCED DRIVE SENSOR ASSEMBLY (w/ Advanced Drive)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  12. REMOVE FRONT LIDAR CLEANER COVER (w/ Advanced Drive)
  13. REMOVE FRONT LIDAR CLEANER NOZZLE (w/ Advanced Drive)

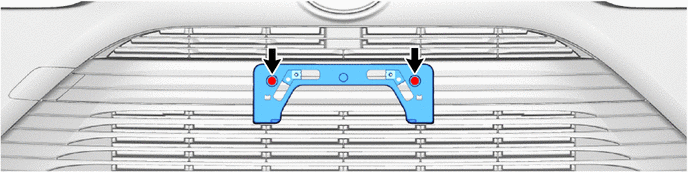

  14. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET
    1. GTY1015265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

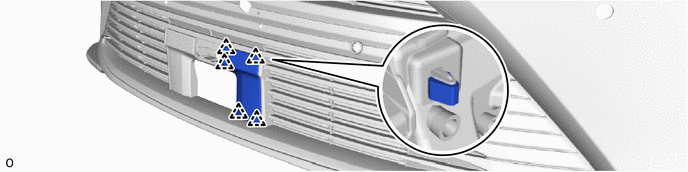

  15. REMOVE RADIATOR GRILLE FINISH PLATE LH (w/ Advanced Drive)
    1. GTY1015269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE RADIATOR GRILLE FINISH PLATE RH (w/ Advanced Drive)
    1. Use the same procedure described for the LH side.

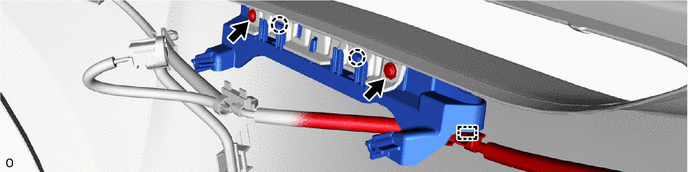

  17. REMOVE FRONT BUMPER EXTENSION LH
    1. GTY1016214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT BUMPER EXTENSION RH
    1. Use the same procedure described for the LH side.

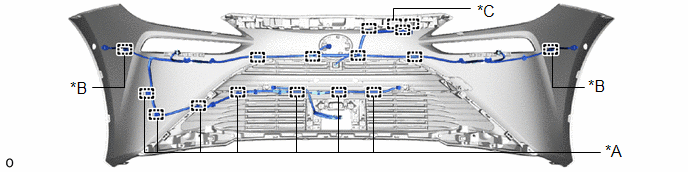

  19. REMOVE FRONT NO. 4 COMPARTMENT WIRE
    1. GTY1014917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Parking Support Brake System *B w/ Advanced Park
      *C w/ Panoramic View Monitor System - -

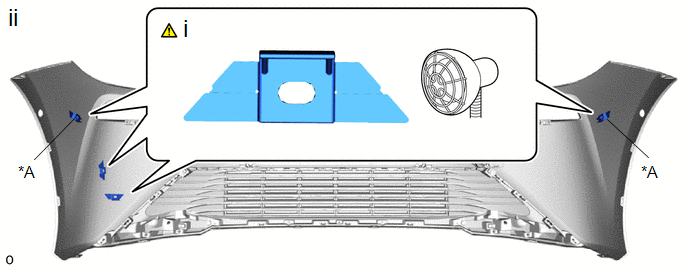

  20. REMOVE FRONT ULTRASONIC SENSOR CLIP (w/ Parking Support Brake System)
    1. GTY1015665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Advanced Park - -
      1. Heat the adhesive of the front ultrasonic sensor clip using a heat light.

        Standard Value

        Part Temperature
        Front Ultrasonic Sensor Clip 20 to 30°C (68 to 86°F)
        WARNING:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the front ultrasonic sensor clip excessively.

      2. Remove each front ultrasonic sensor clip.

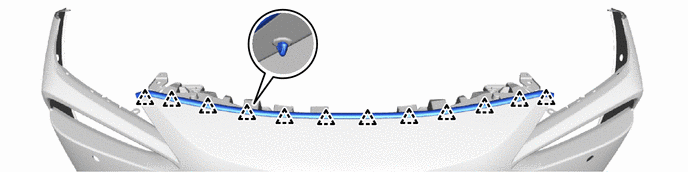

  21. REMOVE HOOD TO FRONT END PANEL SEAL
    1. GTY1015276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

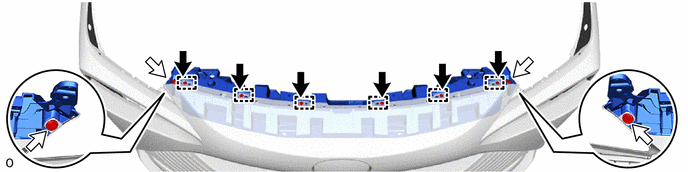

  22. REMOVE RADIATOR GRILLE BRACKET
    1. GTY1015132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw Clip

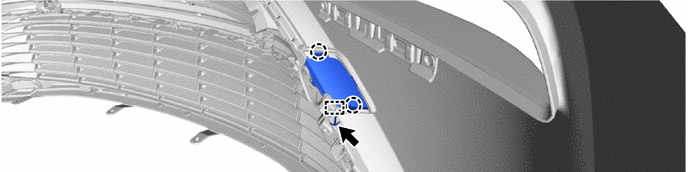

  23. REMOVE FRONT BUMPER HOLE COVER
    1. GTY1015771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Anti-drop hook - -

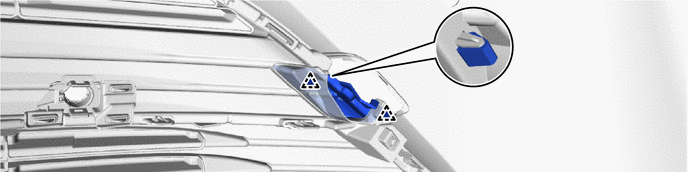

  24. REMOVE LOWER RADIATOR GRILLE RH
    1. GTY1015281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

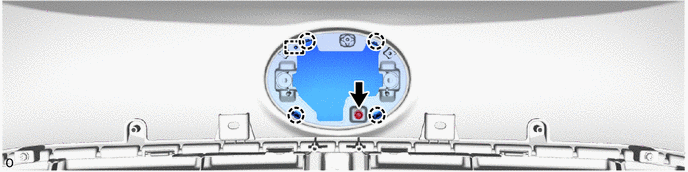

  25. REMOVE RADIATOR GRILLE EMBLEM
    1. GTY1015282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

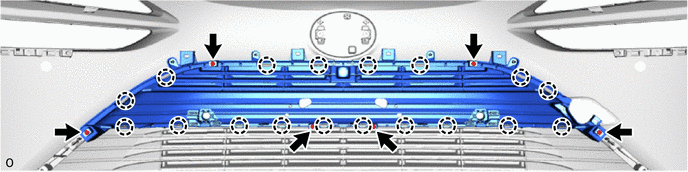

  26. REMOVE RADIATOR GRILLE SUB-ASSEMBLY
    1. GTY1015283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

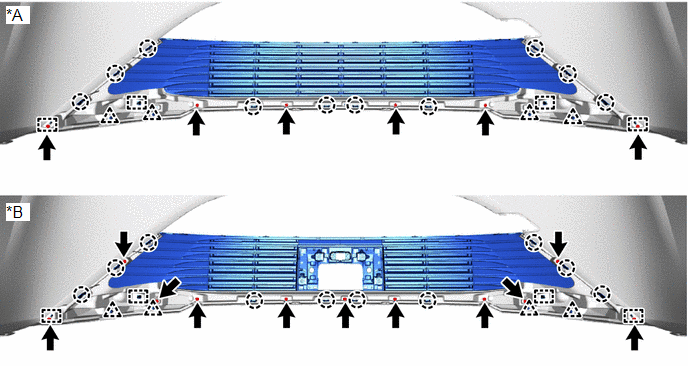

  27. REMOVE LOWER RADIATOR GRILLE SUB-ASSEMBLY
    1. GTY1015407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Advanced Drive *B w/ Advanced Drive

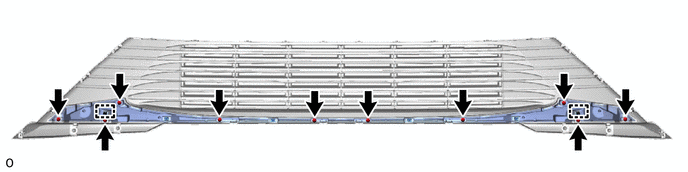

  28. REMOVE LOWER RADIATOR GRILLE MOULDING
    1. GTY1015286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE FRONT BUMPER ENERGY ABSORBER SUB-ASSEMBLY

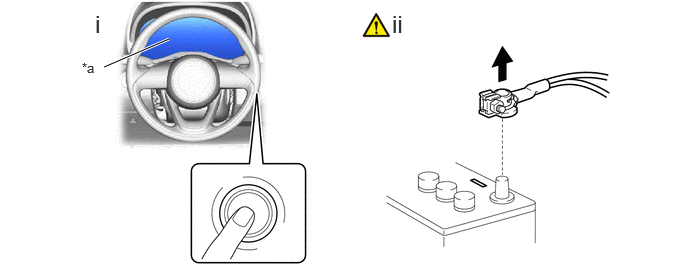

    1. GTY1011291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Goes off - -
      1. Check that the ignition switch is off.
      2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
        WARNING:
        • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
        • If the airbag deploys for any reason, it may cause a serious accident.

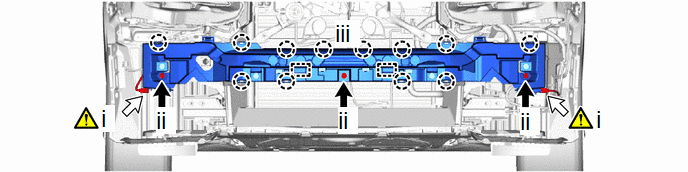

    2. GTY1166097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Airbag Connector
      1. Disconnect the 2 airbag connectors.
        NOTE:

        When disconnecting any airbag connector, take care not to damage the airbag wire harness.

        HINT:

        Refer to How to Connect or Disconnect Airbag Connector: Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [11/2020 - ]

      2. Remove the 3 bolts.
      3. Detach the claw and guide and remove the front bumper energy absorber sub-assembly.

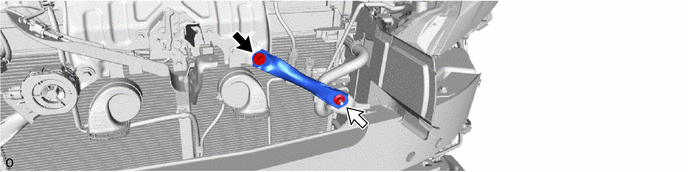

  30. REMOVE UPPER RADIATOR SUPPORT BRACE LH
    1. GTY1014937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Nut

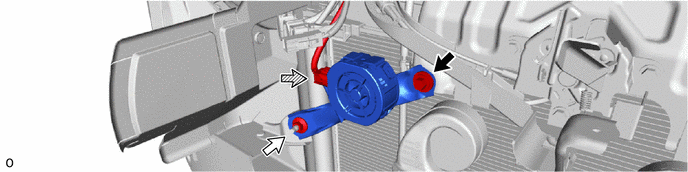

  31. REMOVE UPPER RADIATOR SUPPORT BRACE RH
    1. GTY1015054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Nut
      Connector - -

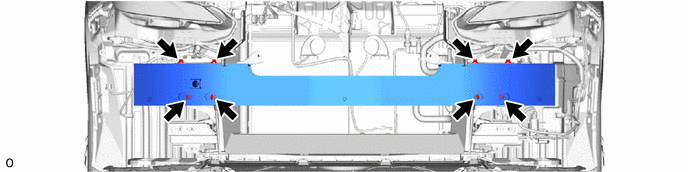

  32. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
    1. GTY1015299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

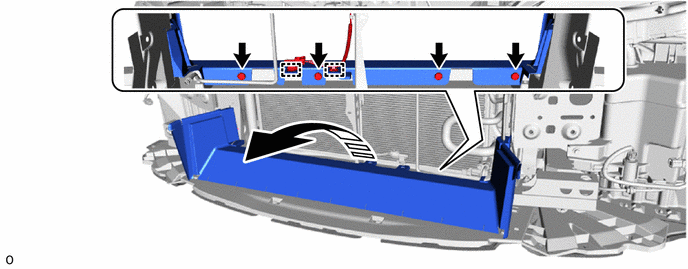

  33. REMOVE LOWER RADIATOR AIR GUIDE PLATE
    1. GTY1015095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

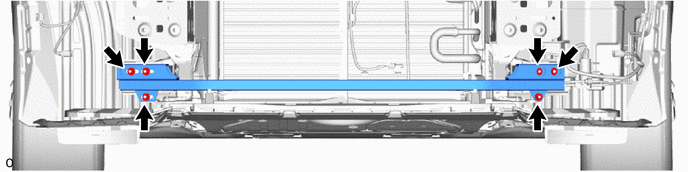

  34. REMOVE FRONT BUMPER NO. 2 REINFORCEMENT SUB-ASSEMBLY
    1. GTY1015301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

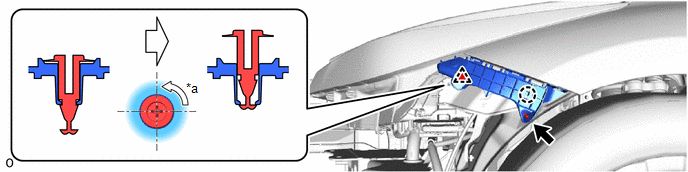

  35. REMOVE FRONT BUMPER SIDE SUPPORT LH
    1. GTY1015271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 90° - -
      Clip Rotation Direction
  36. REMOVE FRONT BUMPER SIDE SUPPORT RH
    1. Use the same procedure described for the LH side.
