Removal [11/2020 - 11/2021]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [11/2020 - 11/2021]

  2. REMOVE FRONT TURN SIGNAL LIGHT ASSEMBLY LH

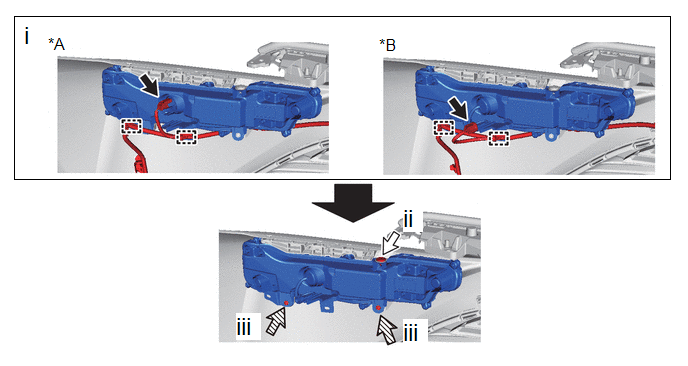

    1. GTY991766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Adaptive High Beam System *B w/ Adaptive High Beam System
      Connector Clip
      Screw - -
