Removal [11/2020 - ]: Procedure

  1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1
  2. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 2

  3. REMOVE BENCH TYPE REAR SEATBACK ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3
  4. REMOVE REAR SEATBACK HOLDER

    Refer to PROCEDURE - Step 4

  5. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY

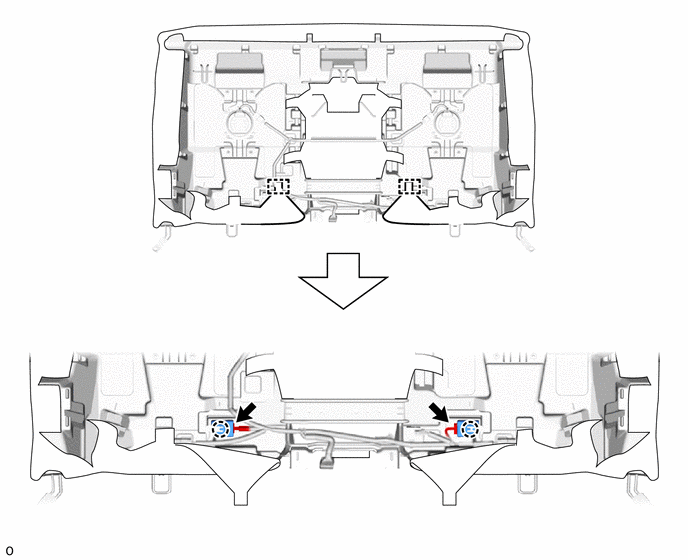

    1. GTY1016645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
