Installation [11/2020 - ]: Procedure

  1. INSTALL FRONT SEATBACK HEATER ASSEMBLY LH

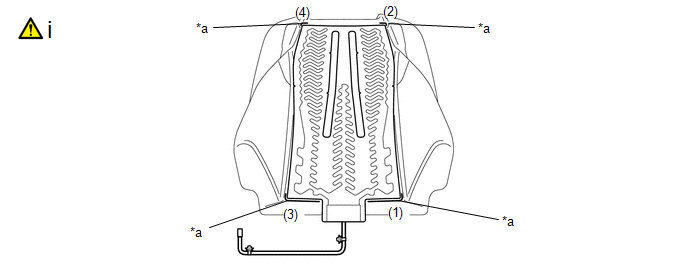

    1. GTY1018091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Marking Line - -
      1. Remove the peeling paper of the front seatback heater assembly LH, align it with the marking line of the separate type front seatback pad LH in the order shown in the illustration, and install the front seatback heater assembly LH.
        NOTE:
        • After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.
        • Do not reuse the front seatback heater assembly LH and separate type front seatback pad LH.
        • Apply pressure to paste the front seatback heater assembly LH to the separate type front seatback pad LH securely.
  2. INSTALL SEPARATE TYPE FRONT SEATBACK COVER LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 32 [11/2020 - 12/2023] , or refer to PROCEDURE - Step 32 [12/2023 - ]
  3. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD LH
  4. INSTALL FRONT SEAT HEADREST SUPPORT
  5. INSTALL FRONT SEATBACK ASSEMBLY LH

    Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

  6. INSTALL FRONT INNER SEAT CUSHION SHIELD LH (for 8 Way Seat Type)
  7. INSTALL FRONT INNER SEAT CUSHION SHIELD RH (for 4 Way Seat Type)
  8. INSTALL FRONT SEAT CUSHION SHIELD LH (for 8 Way Seat Type)
  9. INSTALL FRONT SEAT CUSHION SHIELD RH (for 4 Way Seat Type)
  10. INSTALL FRONT SEAT FRONT CUSHION SHIELD LH
  11. INSTALL FRONT SEAT ASSEMBLY LH

    Refer to INSTALLATION [11/2020 - 12/2022] , or refer to INSTALLATION [12/2022 - 12/2023] , or refer to INSTALLATION [12/2023 - ]
