Removal [08/2017 - ]: Procedure

  1. REMOVE CENTER BACK DOOR GARNISH

    Refer to PROCEDURE - Step 5

  2. REMOVE BACK DOOR GLASS CHANNEL LH (w/o Power Back Door)

    Refer to PROCEDURE - Step 7

  3. REMOVE BACK DOOR GLASS CHANNEL RH (w/o Power Back Door)

    Refer to PROCEDURE - Step 8

  4. REMOVE REAR SPOILER SUBASSEMBLY
    1. w/ Power Back Door:

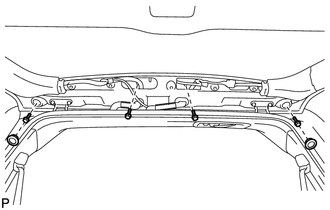

      GTY750285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 hole plugs and 4 bolts.
    2. w/o Power Back Door:
      GTY543820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 4 bolts.

    3. Detach the 3 clips and remove the rear spoiler subassembly.
      GTY611502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
