Removal [08/2015 - 08/2017]: Procedure

  1. REMOVE CENTER BACK DOOR GARNISH

    Refer to PROCEDURE - Step 5

  2. REMOVE BACK DOOR GLASS CHANNEL LH

    Refer to PROCEDURE - Step 7

  3. REMOVE BACK DOOR GLASS CHANNEL RH

    Refer to PROCEDURE - Step 8

  4. REMOVE REAR SPOILER SUBASSEMBLY

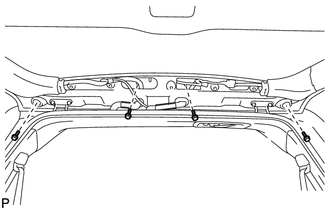

    GTY543820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 4 bolts.
    2. GTY611502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 3 clips and remove the rear spoiler.
