Removal [08/2015 - 08/2017]: Procedure

  1. REMOVE CENTER BACK DOOR GARNISH

    Refer to PROCEDURE - Step 5

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 7

  3. REMOVE BACK DOOR SIDE GARNISH RH

    Refer to PROCEDURE - Step 8

  4. REMOVE BACK DOOR GARNISH

    Refer to PROCEDURE - Step 9

  5. REMOVE BACK DOOR LOCK COVER
    1. Detach the 4 claws and remove the cover.
      GTY568911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE BACK DOOR LOCK ASSEMBLY

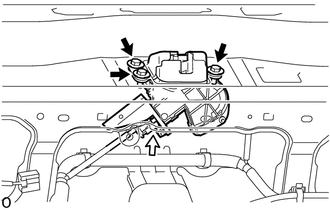

    1. Disconnect the connector.
      GTY568871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Bolt
      Connector
    2. Remove the 3 bolts and door lock.
