Removal [09/2021 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

    Refer to PRECAUTION [09/2021 - 11/2022]

    GTY571595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2021 - 11/2022]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:
    • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to REMOVAL [09/2021 - 11/2022]

  3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3
  4. REMOVE DOOR ASSIST GRIP COVER
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4
  5. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  6. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  7. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7
  8. REMOVE FRONT DOOR GLASS INNER WEATHERSTRIP

    Refer to PROCEDURE - Step 9

  9. REMOVE FRONT DOOR SERVICE HOLE COVER
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 12
  10. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 20
  11. REMOVE FRONT DOOR GLASS RUN

    Refer to PROCEDURE - Step 21

  12. REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  13. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 28
  14. REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 29

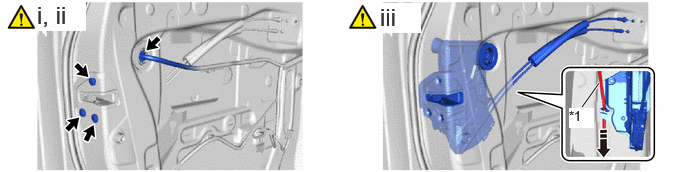

  15. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY
    1. GTY1032007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Door Lock Open Rod - -
      Remove in this Direction - -
      1. Disconnect the connector from the front door lock with motor assembly.
      2. Using a T30 "TORX" socket wrench, remove the 3 screws.
      3. Disconnect the front door lock open rod and remove the front door lock with motor assembly as shown in the illustration.
  16. REMOVE DOOR LOCK WIRING HARNESS SEAL
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When reusing the front door lock with motor assembly.
    1. GTY1031724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

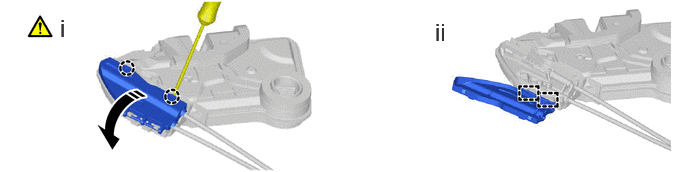

  17. REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY
    1. GTY1032185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws as shown in the illustration.
      2. Disengage the guides to remove the front door lock cover sub-assembly.

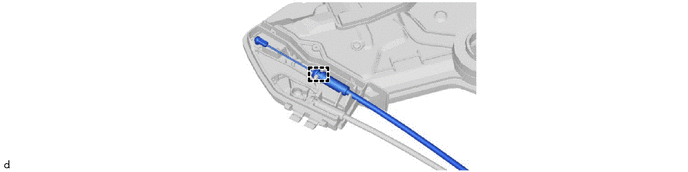

  18. REMOVE OPEN LEVER FRONT DOOR LOCK REMOTE CONTROL CABLE
    1. GTY1032615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

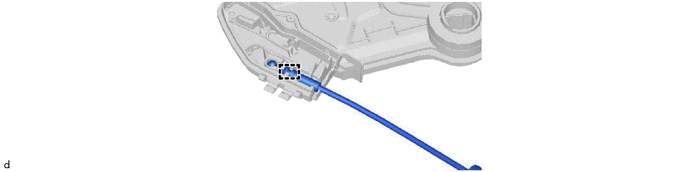

  19. REMOVE FRONT DOOR INSIDE LOCK AND UNLOCK KNOB LOCKING CABLE
    1. GTY1031723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
